Smart App Sinewave uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 9 AC outlet(s)
- Battery Backup
- Line-Interactive Topology
- Automatic Voltage Regulation (AVR)
- Sine Wave Output
- Battery Equalization Technology
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

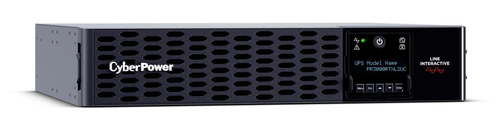

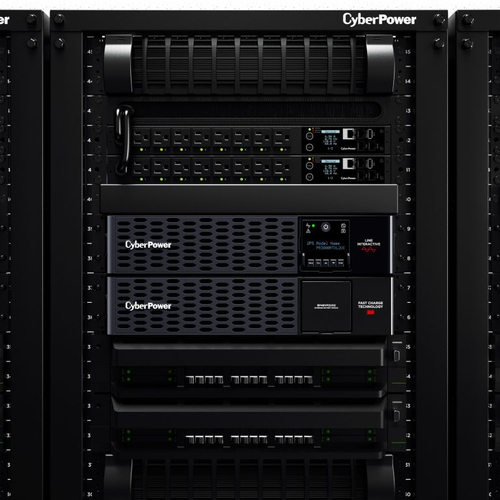

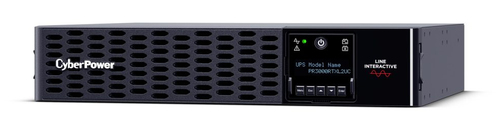

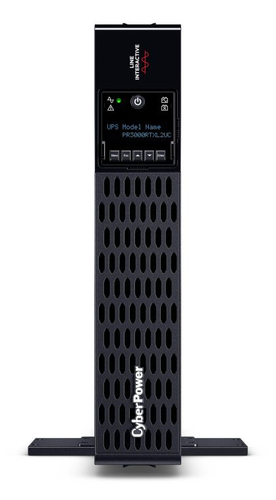

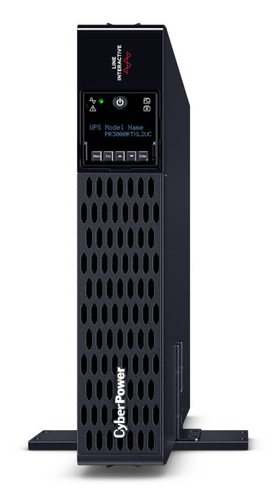

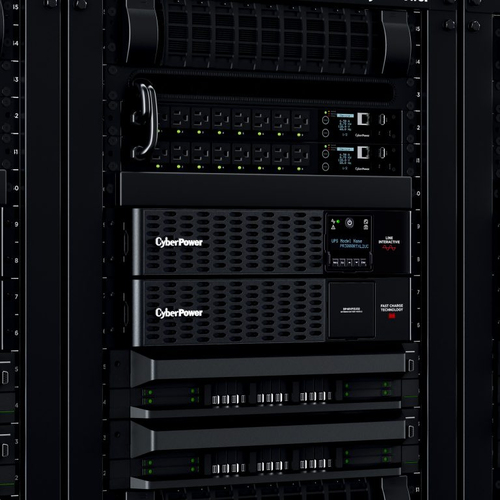

The PR3000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

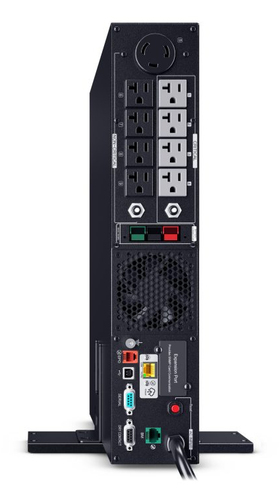

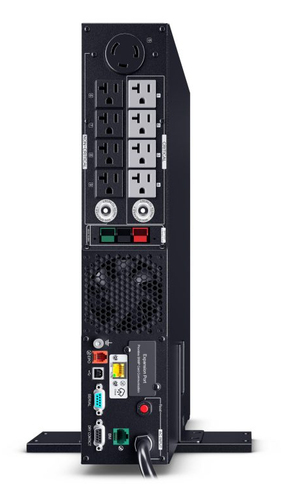

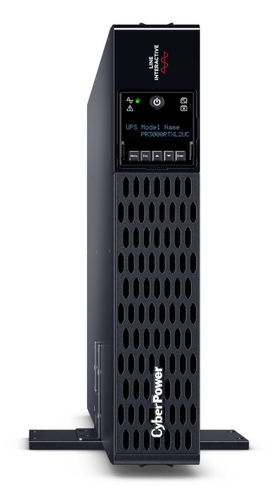

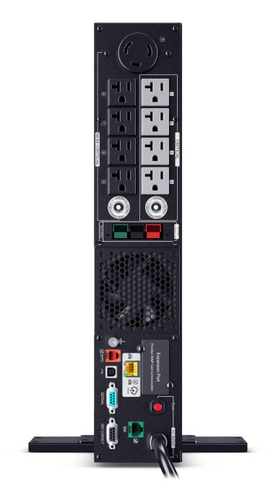

The Smart App Sinewave PR3000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR3000RTXL2UC.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Waveform
- Sine
- Input operation voltage (min)
- 75 V
- Input operation voltage (max)
- 149 V
- Input frequency
- 47/63 Hz
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Maximum current
- 15 A
- Surge energy rating
- 2430 J
- Response time
- 13 ms
- Heat dissipation
- 192.5 BTU/h
- Power factor
- 1
- EMI/RFI noise filtering
- Yes
- Noise level
- 57.5 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Fault, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types

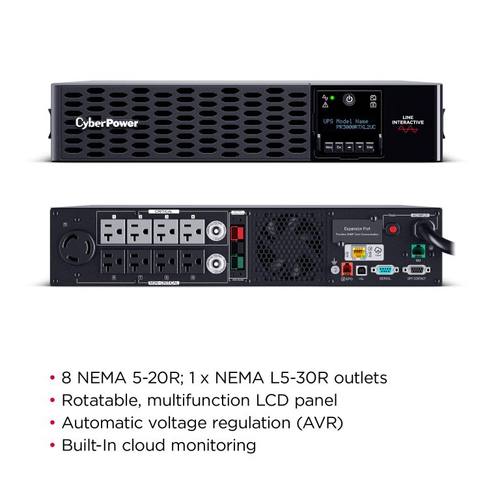

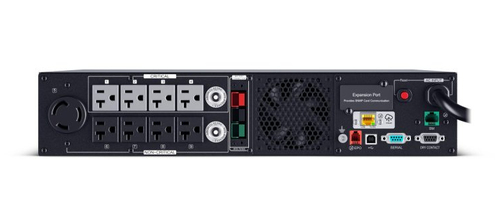

- NEMA L5-30R, NEMA 5–20R
- Power plug
- NEMA 5-20R
- AC outlets quantity
- 9 AC outlet(s)
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Serial ports quantity
- 1
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Number of batteries supported
- 4
- Typical backup time at full load
- 1.7 min
- Typical backup time at half load
- 7 min
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1290X4J
Design
- Form factor
- Rackmount/Tower
- Housing material
- Metal
- Rack capacity
- 2U
- Cable length
- 3 m
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Power, Fault, Battery level
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 14999 m
Packaging content
- Cables included
- USB cable, Serial

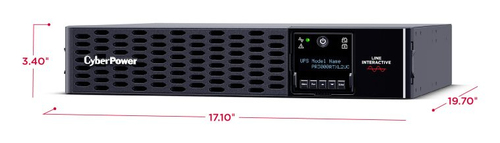

Weight & dimensions
- Width
- 434 mm
- Depth
- 500 mm
- Height
- 86 mm
- Weight
- 34.2 kg
Packaging data
- Package width
- 5524 mm
- Package depth
- 6159 mm
- Package height
- 2667 mm
- Package weight
- 40.5 kg
