1500VA 1500W, 1U, RM, Sinewave

Part # PR1500RM1UCUPC 64953293912154.7 lb

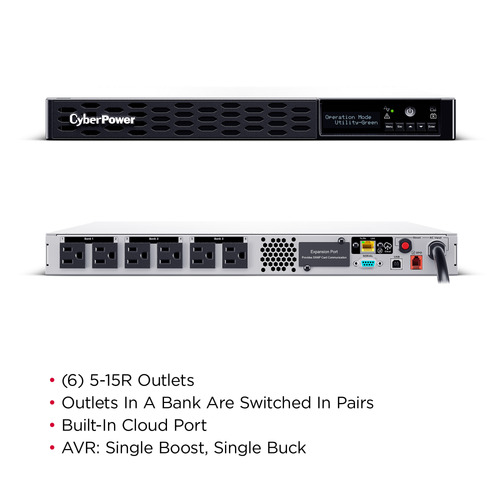

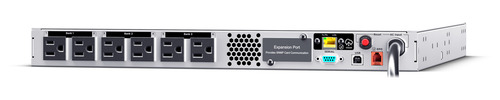

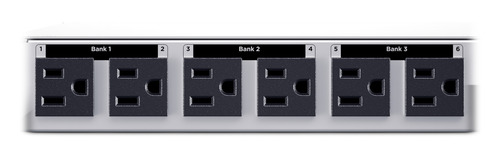

Independently Controlled Outlet Banks
Battery Backup
Line-Interactive Topology
Automatic Voltage Regulation (AVR)
Sine Wave Output

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

The PR1500RM1UC is a Smart App Sinewave rack mounted UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

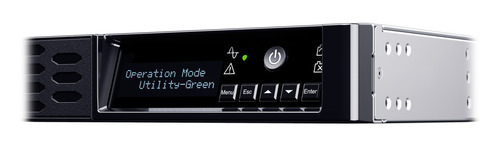

The Smart App Sinewave PR1500RM1UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast.

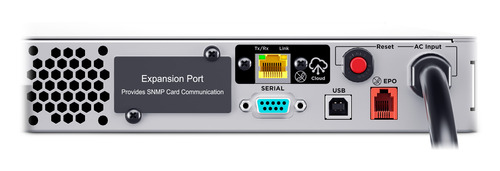

This model works with remote management card RMCARD205 or RMCARD400, which provides remote management and configuration of the UPS via a standard web browser or network management system. Built-in Cloud Monitoring.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 1.5 kVA
Output power: 1500 W
Waveform: Sine
Input operation voltage (min): 88 V
Input operation voltage (max): 153 V
Input frequency: 50/60 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 125 V
Output frequency: 50/60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Maximum current: 15 A
Surge energy rating: 2720 J
Response time: 7 ms
Number of input phases: 1
Number of output phases: 1
Output power factor: 1
Emergency Power Off (EPO): Yes
Noise level: 40 dB
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
