2U 8x5-15R 10Ft Cord Cloud

Part # PR1000RTXL2UCUPC 64953293554361.2 lb

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

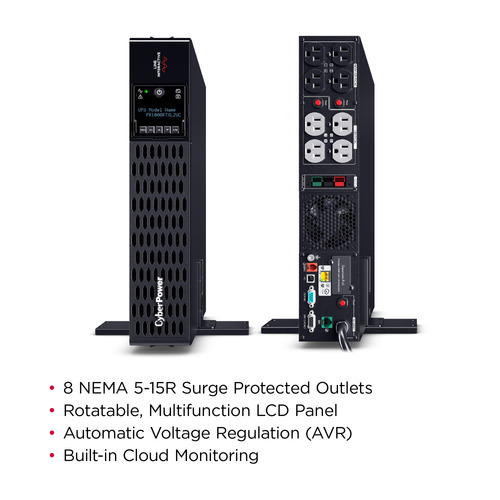

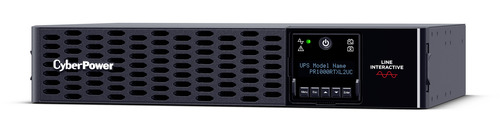

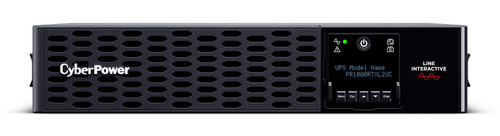

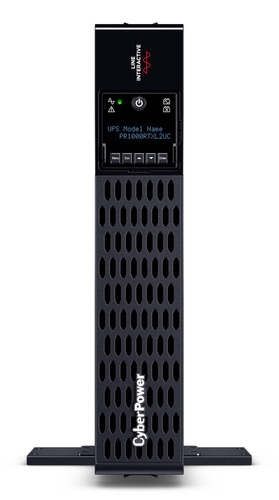

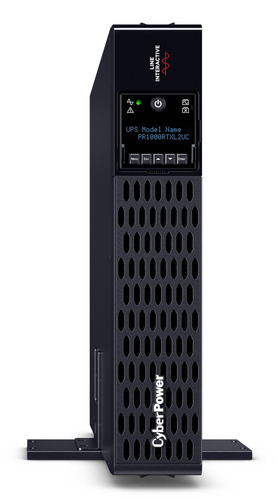

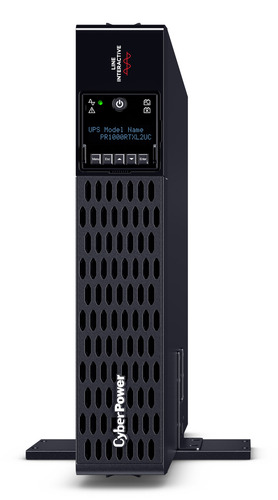

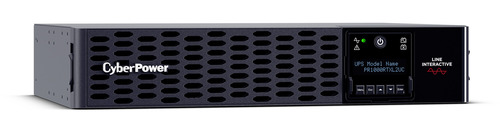

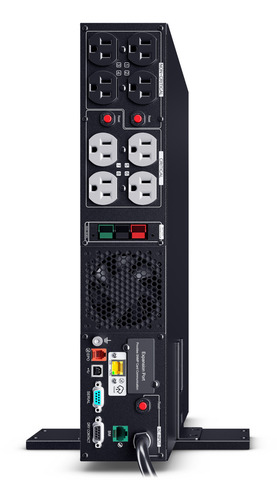

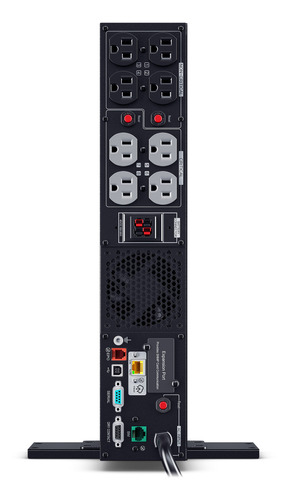

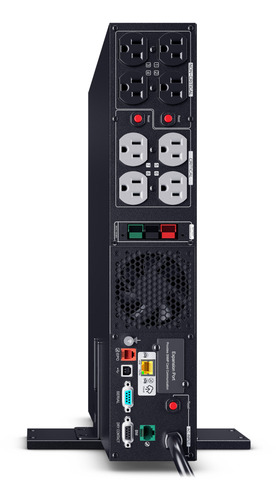

The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

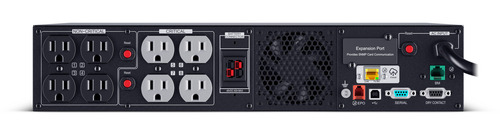

The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 1000 W
Waveform: Sine
Input operation voltage (min): 75 V
Input operation voltage (max): 149 V
Output operation voltage (min): 100 V
Output operation voltage (max): 125 V
Output frequency: 50/60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 2430 J
Response time: 6 ms
Output power factor: 1
Emergency Power Off (EPO): Yes
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
