8Out Nema 515P

Part # PDU81001GUPC 6495329382237.8 lb

Power Distribution
Switchable Outlets
Per Outlet Power Metering
CyberPower Management Console
Remote and Local Monitoring

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

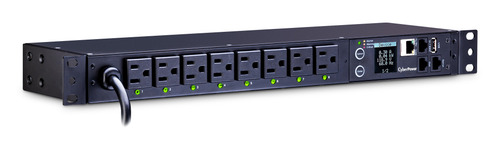

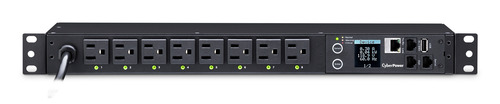

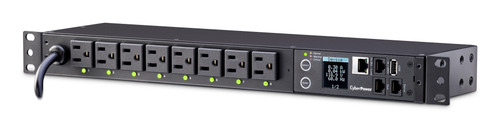

Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

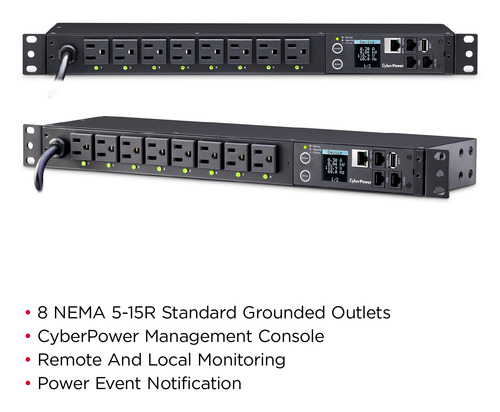

The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shut down.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Per Outlet Power Metering

Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.

CyberPower Management Console

A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.

Remote and Local Monitoring

Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment and connected devices.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

1U Mounting Brackets

Space-efficient 1U design allows PDU to be installed horizontally or vertically, under a counter or via wall mount.

Durable Metal Housing

Specifications

Design

PDU types: Metered-by-outlet, Switched
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal/Vertical
Housing material: Metal
Product colour: Black
Display: LCD
On/off switch: No

Ports & interfaces

AC outlets quantity: 8 AC outlet(s)
Power plug: NEMA 5-15P
AC outlet types: NEMA 5-15R
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

Cable length: 3.7 m

Management features

Monitoring: Current, Power, Voltage
Supported network protocols: IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
