Switched ATS PDU, 20A Derated to 16A, 200240V, 2 x NEMA L620P Plug w/10 Ft Cords, 10 Outlets 8 x

Part # PDU44006UPC 6495329339210.01 lb

Automatic Transfer Switch
Switchable Outlets
Remote and Local Monitoring
Selectable Color LCD
Automatic Event Notifications

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

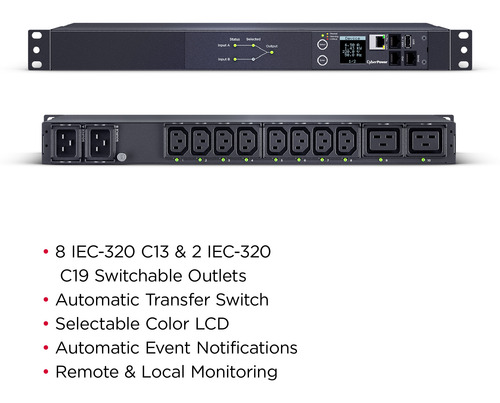

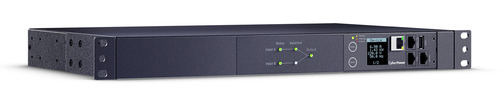

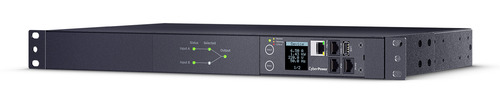

Ensure continued operation of critical devices with the CyberPower PDU44006 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-free Design

Safeguards against accidental power shut down.

Mounting Brackets

Includes all necessary hardware for horizontal rack installation.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Brackets

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Specifications

Design

PDU types: Switched, Monitored
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal
Housing material: Metal
Product colour: Black
Display: LCD
On/off switch: No

Ports & interfaces

AC outlets quantity: 10 AC outlet(s)
Power plug: NEMA L6-20P
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

LED indicators: Status, Selected, TX / RX, Link
Cable length: 3 m

Management features

Monitoring: Current, Power, Voltage
Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
