10Out 2xIEC320 C20

Part # PDU44005GUPC 64953293916913.4 lb

Automatic Transfer Switch
Switchable Outlets
Remote and Local Monitoring
Selectable Color LCD
Automatic Event Notifications

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

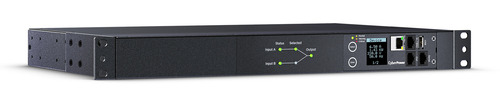

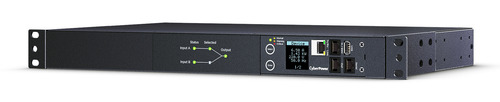

Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

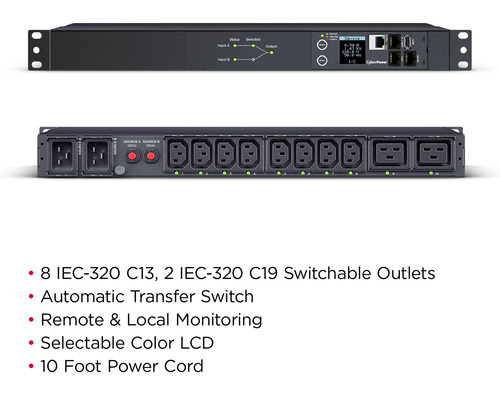

The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications.

Automatic Transfer Switch

Dual power cords (A and B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources* to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Remote and Local Monitoring

Enables offsite and onsite tracking of PDU vitals.

Selectable Color LCD

Provides real-time meter status for current (amperes), input and output voltages, power consumption (kilowatts), and hardware/firmware versions. User selectable LCD background color allows for easy classification of PDU based on application. The LCD turns red when there is an alert.

Automatic Event Notifications

Reports immediate updates about power events via email, SMS text, or SNMP traps.

Daisy-Chain Capability

Manages up to four PDUs with a single IP address.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design

PDU types: Switched, Monitored
Type: Single-phase
Rack capacity: 1U
Housing material: Metal
Product colour: Black
Display: LCD
On/off switch: Yes

Ports & interfaces

AC outlets quantity: 10 AC outlet(s)
Power plug: IEC 320
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB ports quantity: 1

Features

LED indicators: Status, Selected, TX / RX, Link
Cable length: 3 m

Management features

Monitoring: Current, Power, Voltage, Alarm
Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
