12Out 2xIEC320 C14

Part # PDU44004GUPC 64953293915213.4 lb

Dual network gigabit 10/100/1000 ethernet ports for redundancy and seamless connectivity to modern switching infrastructure.
If one PDU experiences a power failure, the rest of the PDUs will remain connected to the network.
Enables offsite and onsite tracking of PDU vitals.

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

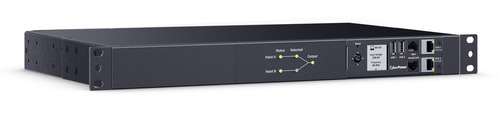

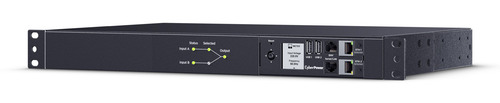

Ensure continued operation of critical devices with the CyberPower PDU44004G Gigabit Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

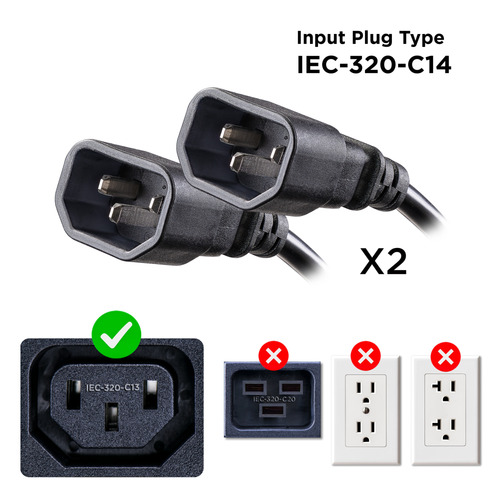

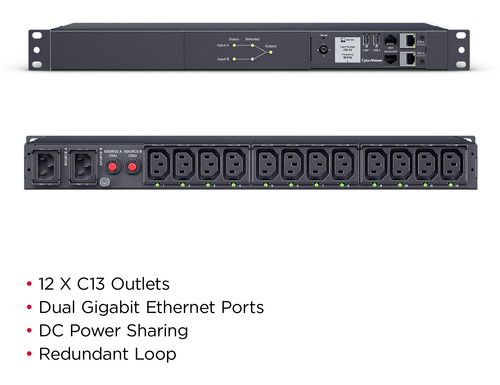

The PDU44004G supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications.

Specifications

Design

PDU types: Monitored, Switched
Type: Single-phase

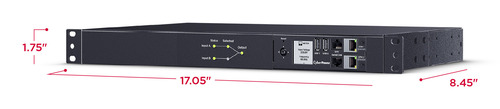

Rack capacity: 1U
Housing material: Metal
Product colour: Black

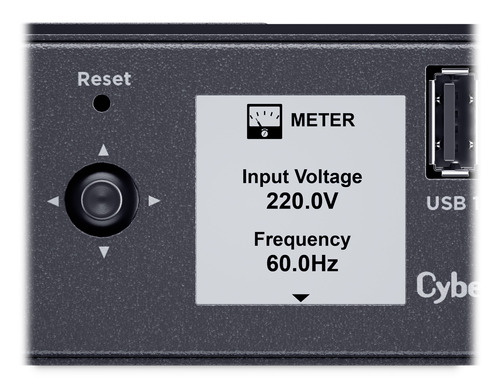

Display: LCD
On/off switch: Yes

Ports & interfaces

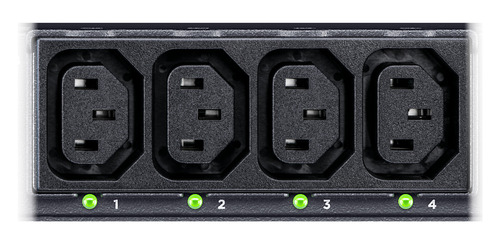

AC outlets quantity: 12 AC outlet(s)
Power plug: IEC 320
Serial ports quantity: 1

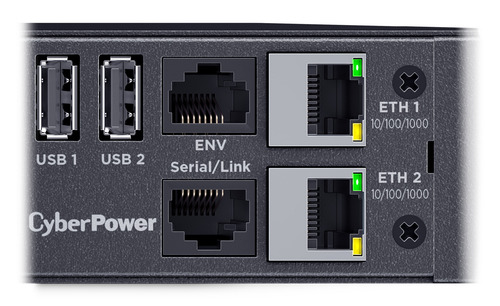

Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 2

Features

LED indicators: Status, Selected, TX / RX, Link
Cable length: 3 m

Management features

Monitoring: Current, Humidity, Temperature, Power, Voltage, Alarm
Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
