10 Outlets, 10 ft, 2 x NEMA 515P

Part # PDU44001GUPC 64953293903913.3 lb

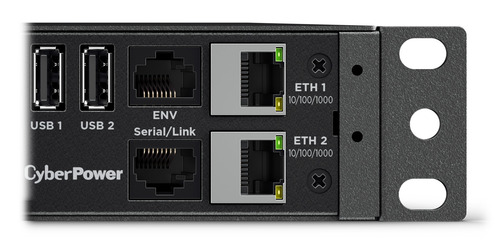

Dual network gigabit 10/100/1000 ethernet ports for redundancy and seamless connectivity to modern switching infrastructure.
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Provide immediate updates about power events via email, SMS text, or SNMP traps.

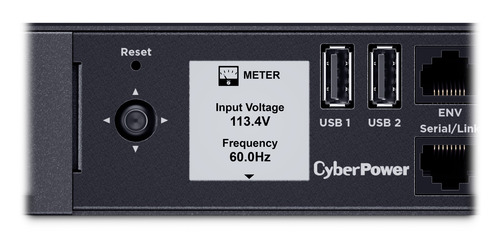

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

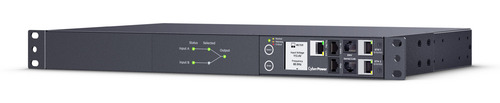

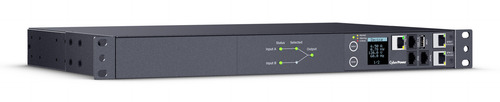

Ensure continued operation of critical devices with the CyberPower PDU44001G Gigabit Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

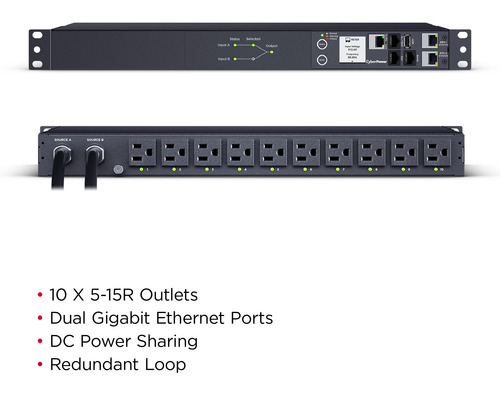

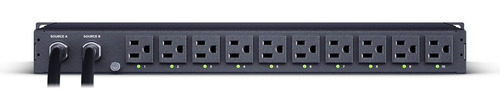

The PDU44001G supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include dual gigabit ethernet ports, DC power sharing, Redundant Loop, an LCD with selectable background color, built-in web interface, and power event notifications.

DC Power Sharing

When 2 PDUs are linked together and one suddenly shuts down, the gigabit ethernet module has limited ability to notify the user of the event.

Redundant Loop

If one PDU experiences a power failure, the rest of the PDUs will remain connected to the network.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shutdown.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

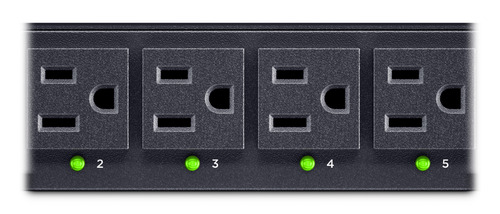

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it's needed.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design

PDU types: Monitored, Switched
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal/Vertical
Housing material: Metal
Product colour: Black
Display: LCD
On/off switch: No

Ports & interfaces

AC outlets quantity: 10 AC outlet(s)
Power plug: NEMA 5-15P
AC outlet types: NEMA 5-15R
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 1

Features

LED indicators: Status, Selected, TX / RX, Link
Cable length: 3 m

Management features

Monitoring: Current, Voltage, Power
Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
