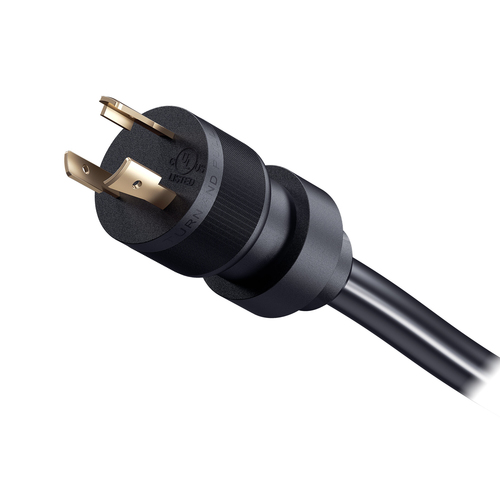

Switched PDU, 30A Derated to 24A, 100120V, 50/60 HZ, 24 x NEMA 520R Outlets, NEMA L530P Plug, 10 Ft

Part # PDU41102UPC 649532621590Warranty: 3 year19 lb

Automated notifications: Email, SMS Text, and SNMP Trap
Phase: Single
Amps: 30A (Derated to 24A)
Volts: 100 – 120 V
Frequency: 50Hz/60Hz
Size: 0U Rackmount

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

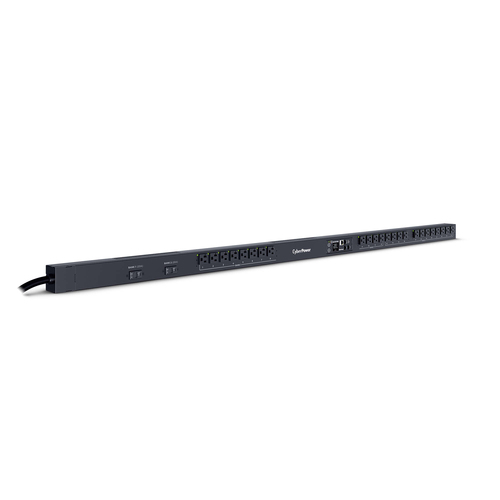

The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Remote and Local Monitoring

The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

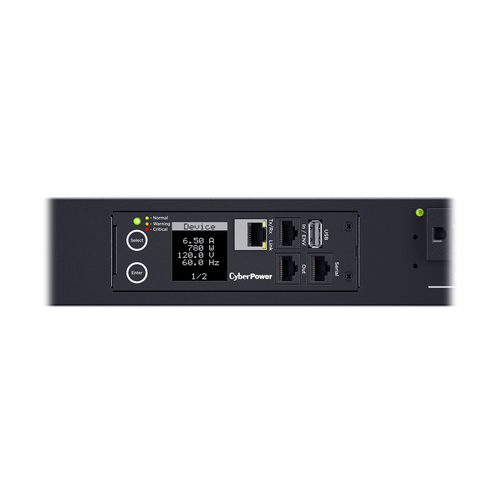

Digital Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

Switch-Free Design

Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design

Rack capacity: 0U
Mounting: Vertical
Housing material: Metal
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 24 AC outlet(s)
Power plug: NEMA 5–20R
AC outlet types: NEMA 5-20R
Ethernet LAN (RJ-45) ports: 3
USB ports quantity: 1

Features

Cable length: 3 m

Management features

Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Firmware upgradeable: Yes
