16 Outlets, 12 ft, NEMA L530P

Part # PDU41023UPC 64953293766014.8 lb

Switchable Outlets
CyberPower Management Console
Remote and Local Monitoring
Automatic Event Notifications
Power Control Display

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

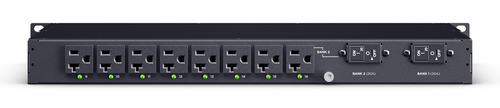

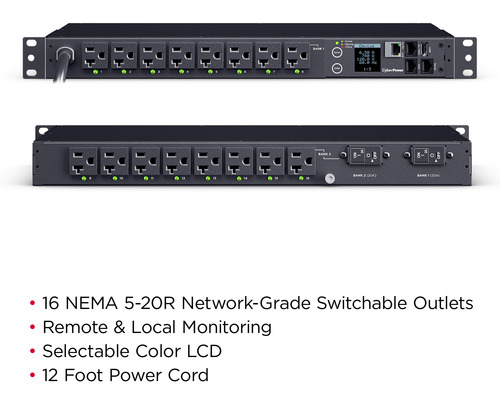

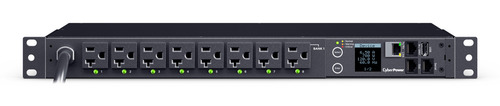

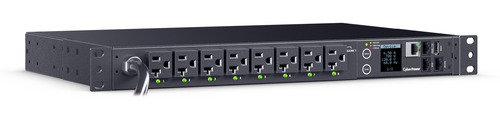

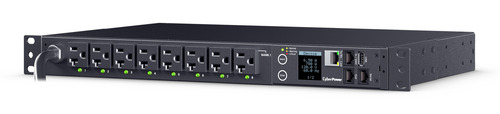

The CyberPower PDU41023, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Power Control Display

Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Configurable Mounting Brackets

Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design

PDU types: Switched
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal/Vertical
Housing material: Metal
Product colour: Black
Display: Yes

Ports & interfaces

AC outlets quantity: 16 AC outlet(s)
Power plug: NEMA L5-30P
AC outlet types: NEMA 5-20R
Ethernet LAN (RJ-45) ports: 1

Features

LED indicators: TX / RX, Link, Status
Cable length: 3.7 m

Management features

Monitoring: Current, Power, Voltage
Supported network protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog, RADIUS, LDAP, LDAPS, Windows AD
