120V (16) 5-20R Out L5-30P 12ft Cord 2U 3YR Wty

Part # PDU41003UPC 649532614097Warranty: 3 Year13.75 lb

Automated notifications: E-mail, SMS, Text and SNMP Trap
Phase: Single
Amps: 30A (Derated to 24A)
Volts: 100-120Vac
Frequency: 50Hz/60Hz
Plug Type: NEMA L5-30P

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

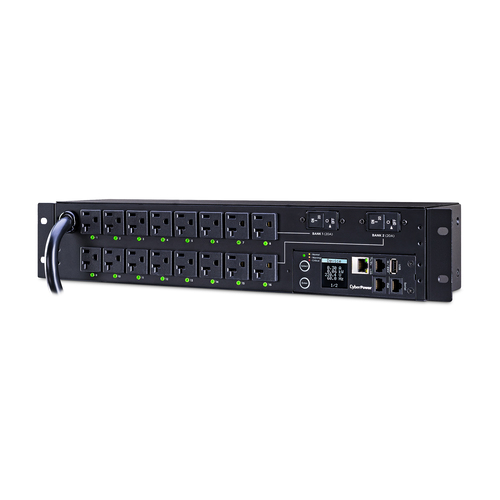

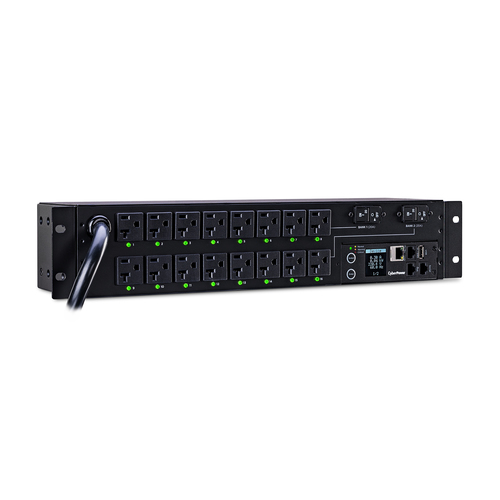

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution

Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

Safeguards against accidental power shutdown.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

Downloadable improvements (firmware updates) to programs that run the PDU.

Power Control Display

Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
