Home/Catalogue/CyberPower/PDU30MVHVT20F
Drag to turn · 2 views
30A Derated to 24A, 200 230 V, 50Hz/60Hz, NEMA L630P plug, 20 IEC320, 0U Rackmount, 10 ft cord
- Metered 0U Black
- LCD
- 20 AC outlet(s)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

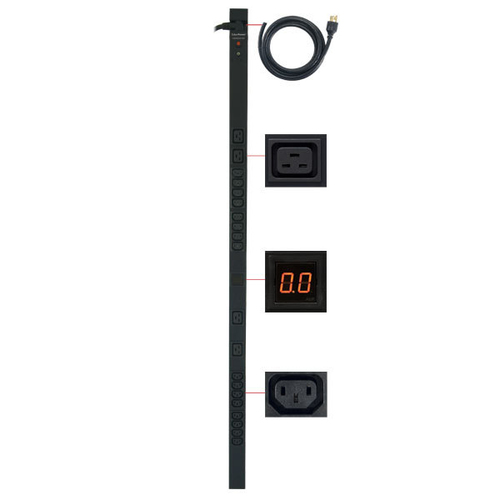

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- Single NEMA L6-30P twist lock plug
- 30-amp electrical capacity with dual 16-amp circuit breakers
- 200/230V AC - 50/60Hz
- 2 Front LCDs for real-time load monitoring
- 48" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 20 AC outlet(s)
- Power plug
- NEMA L6-30P
Features
- Cable length
- 3.05 m
Management features
- Monitoring
- Current
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 30 A
- Nominal output voltage
- 200-230 V
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- UL60950_1 ETL CSA C22.2
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Weight (imperial)
- 4.08 kg (9 lbs)
- Dimensions (W x D x H) (imperial)
- 44.5 x 57.1 x 1219.2 mm (1.75 x 2.25 x 48")
Downloads
