30A Derated to 24A, 200 240 V, 2x L630P plugs, 19 rear, IEC320 C13 16 / C19 2, NEMA L630R 1, 2U

Part # PDU30MHVT19ATUPC 649532610938Warranty: 3 Years0.01 lb

Metered 2U Black
LCD
19 AC outlet(s) C13 coupler, C19 coupler, NEMA L6-30R

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

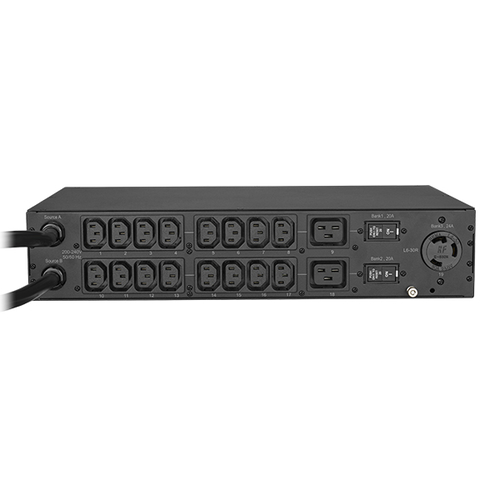

The CyberPower PDU30MHVT19AT, 19-outlet 2U rack mount metered auto transfer switch (ATS) power distribution unit (PDU), provides 200-240V / 30A output. The PDU distributes unfiltered electrical pass-through to 1 NEMA L6-30R, 18 IEC-320 (16) C13 / (2) C19 receptacles from redundant NEMA L6-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current (displayed in amperes) used by connected equipment. The LCD can also display input and output voltages, to diagnose potential issues with input AC power. Active power consumption (displayed in kilowatts) and hardware and firmware versions are also viewable on the LCD screen.

The PDU30MHVT19AT includes a SNMP/HTTP card slot for adding an RMCARD202 or RMCARD203 (sold separately). With the addition of the SNMP card and an IP address on the network interface, users have real-time monitoring of the ATS PDU. The CyberPower Management Console provides real-time remote monitoring of PDU vitals and event logging to review historical power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications can be sent to designated users when power events occur, via Email, SMS Text, or SNMP Trap.

Designed for datacenters and other demanding electrical applications, the PDU30MHVT19AT has a rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted either horizontally and is UL60950_1 and CSA C22.2 certified by ETL and FCC Class A certified. A three-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
