Home/Catalogue/CyberPower/PDU30BHVT12R
Drag to turn · 2 views
30A Derated to 24A, 200 230 V, 50Hz/60Hz, NEMA L630P plug, 12 IEC320 C13, 1U Rackmount, 10 ft cord
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

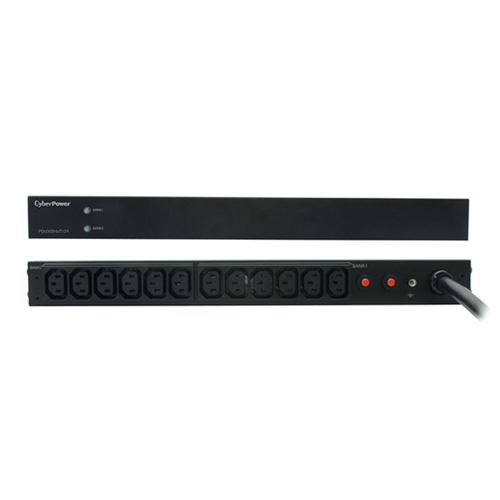

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU30BHVT12R) provides 200V/230V 30A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 12 IEC-320 C13 output receptacles
- Single NEMA L6-30P twist lock plug
- 30-amp electrical capacity with circuit breaker
- 200/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 1U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 12 AC outlet(s)
- Power plug
- NEMA L6-30P
- AC outlet types
- C13 coupler
Features
- LED indicators
- Yes
- Cable length
- 3.05 m
Power
- Nominal input voltage
- 200-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 30 A
- Nominal output voltage
- 200-230 V
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- UL60950_1 ETL, CSA C22.2
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Weight (imperial)
- 2.04 kg (4.5 lbs)
- Dimensions (W x D x H) (imperial)
- 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Downloads
