Enclosure, Door, Side Panel, Locking, BLK, 5YR WTY
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

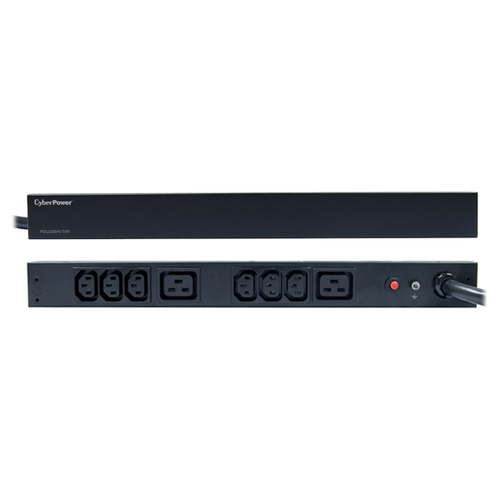

The CyberPower 8-outlet (8 Rear) rack mount basic power distribution unit (PDU20BHVT8R) provides 208V/230V 20A output. It distributes power to 8 IEC-320 (2-C19/6-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 8 IEC-320 (2-C19/6-C13) output receptacles
- 20-amp electrical capacity with circuit breaker
- Single NEMA L6-20P twist lock plug
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 1U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- NEMA L6-20P
Features
- Cable length
- 3.05 m
Power
- Nominal input voltage
- 208-230 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 20 A
- Nominal output voltage
- 208-230 V
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- UL60950_1 ETL, CSA C22.2
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Weight (imperial)
- 1.81 kg (4 lbs)
- Dimensions (W x D x H) (imperial)
- 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
