15A Derated to 12A, 120 V, 50Hz/60Hz, NEMA 515P plug, 14 NEMA 515R, 1U Rackmount, 15 ft cord
- Metered 1U Black
- LCD
- 14 AC outlet(s) NEMA 5–15R
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

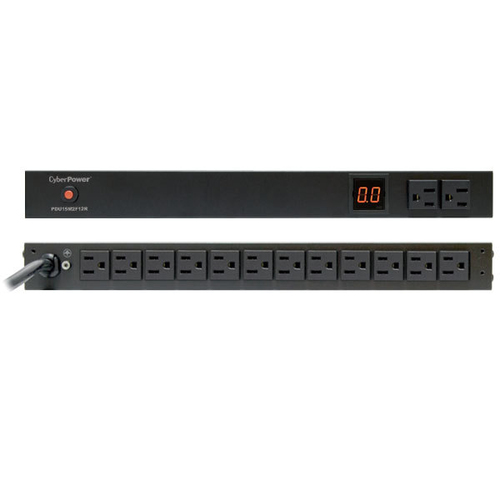

The CyberPower 14-outlet (2 Front and 12 Rear) rack mount metered power distribution unit (PDU15M2F12R) provides 120V 15A output. It distributes power to 14 NEMA 5-15R receptacles from a single NEMA 5-15P input, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 14 NEMA 5-15R (2 Front/12 Rear) output receptacles
- 15-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 1U rack mount
- Front LCD for real-time load monitoring
- 15-ft. power cord
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 1U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 14 AC outlet(s)
- Power plug
- NEMA 5–15P
- AC outlet types
- NEMA 5–15R
Features
- Cable length
- 4.57 m
Management features
- Monitoring
- Current
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 15 A
- Nominal output voltage
- 120 V
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- UL1363 ETL, CSA C22.2
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Weight (imperial)
- 1.81 kg (4 lbs)
- Dimensions (W x D x H) (imperial)
- 444.5 x 57.1 x 44.5 mm (17.5 x 2.25 x 1.75")
