Home/Catalogue/CyberPower/EC750GTAA
Drag to turn · 3 views
750VA/450W Standby UPS NEMA 515 RJ11 EMI ECO TAA Compliant
- Standby (Offline)
- 0.75 kVA 450 W
- Waveform: Sine
- 12 AC outlet(s)
- Sealed Lead Acid (VRLA) 120 V
- Compact Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

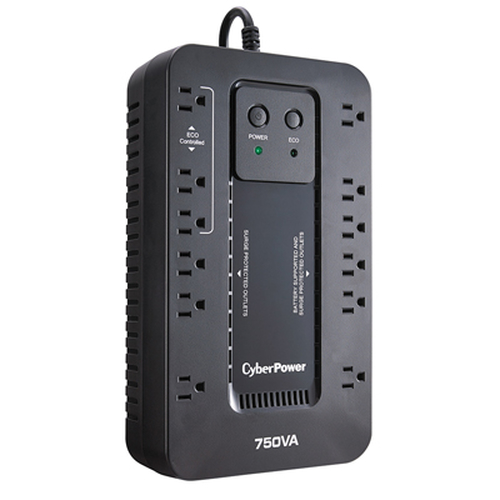

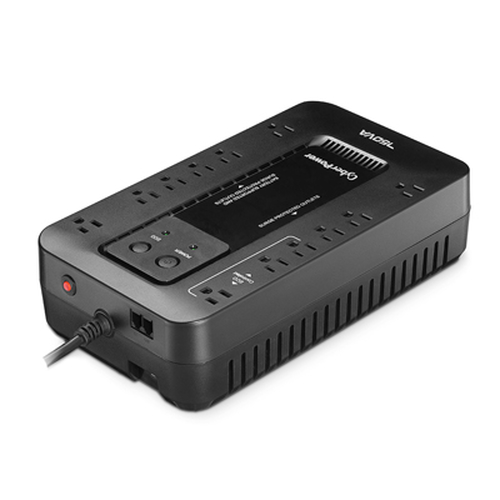

A compact UPS with standby topology, the CyberPower Ecologic EC750GTAA provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. It complies with the U.S. Trade Agreement Act (TAA). During power interruptions, the EC750GTAA offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs—USB connection required. The EC750GTAA comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone lines from causing damage to electronics.
Standby Topology
Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
ECO Mode
Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.
LED Status Lights
Indicate Power On, ECO on/off.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel Personal Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
ENERGY STAR
This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
Specifications
Features
- UPS topology
- Standby (Offline)
- Output power capacity
- 0.75 kVA
- Output power
- 450 W
- Waveform
- Sine
- Input operation voltage (min)
- 96 V
- Input operation voltage (max)
- 140 V
- Input frequency
- 47/63 Hz
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 526 J
- Response time
- 4 ms
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Surge protection features
- Telephone
- Power protection features
- Short circuit
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 12 AC outlet(s)
- USB port
- Yes
- Modem (RJ-11) ports
- 2
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 120 V
- Typical backup time at full load
- 1.7 min
- Typical backup time at half load
- 8.8 min
- Battery recharge time
- 8 h
Design
- Form factor
- Compact
- Cable length
- 1.5 m
- Product colour
- Black
- LED indicators
- Power, Battery replacement
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- UL1778, cUL 107.3, FCC DOC Class B
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 309.9 mm
- Depth
- 177.8 mm
- Height
- 78.7 mm
- Weight
- 3.5 kg
