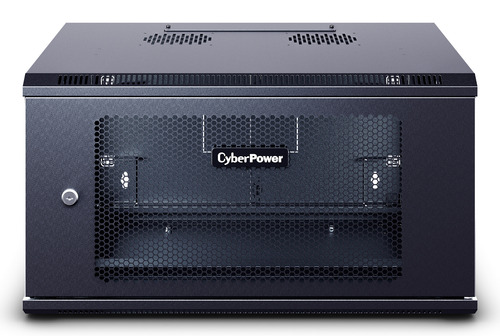

6U 19 Wall Mount Enclosure, 600mm wide, 600mm deep, hex perforated metal door, side panels, locking

Part # CR6U61003UPC 6495329361130.01 lb

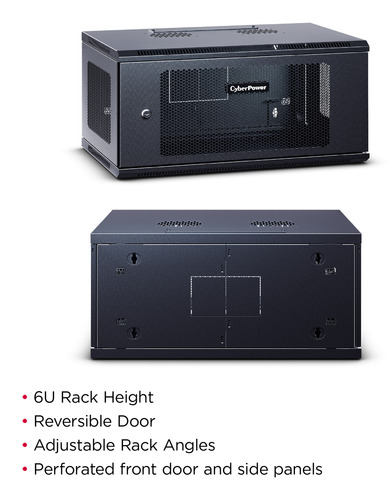

Perforated Front Door and Side Panels
Reversible Door
Quick Release Side Panels
Cable Access Openings
Rack Mounting Compatibility

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

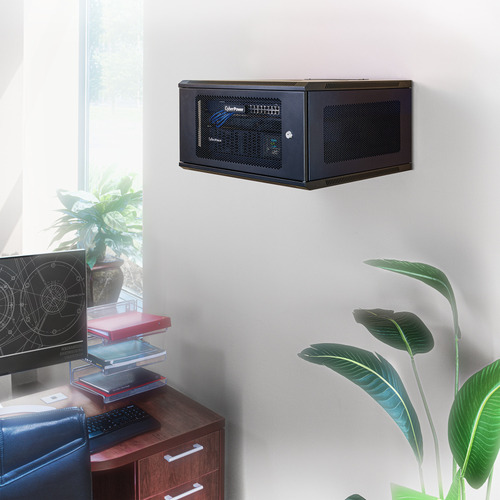

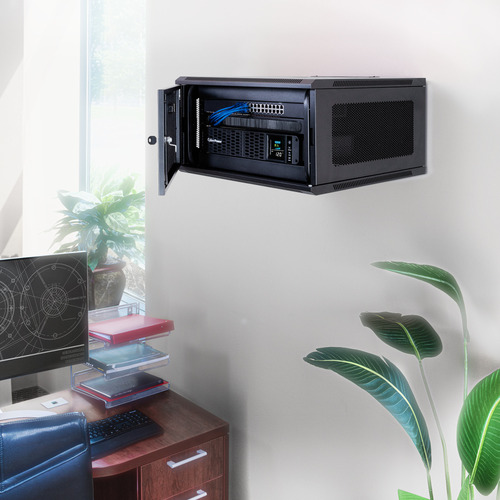

The CR6U61003 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and mounting holes. The CR6U61003 ships fully assembled for quick deployment and can be customized with compatible accessories.

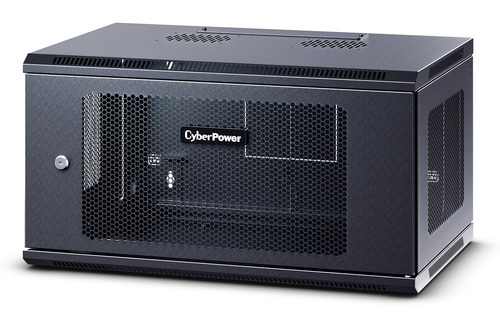

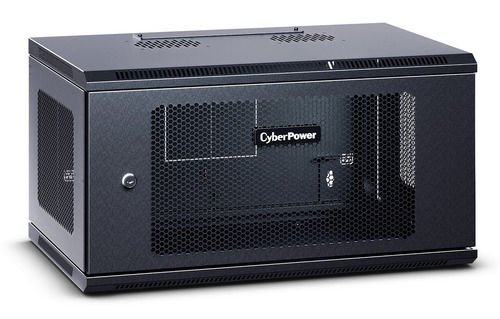

Perforated Front Door and Side Panels

Provides ventilation for small servers and networking equipment.

Reversible Door

Front door has spring loaded hinges and can be easily moved to the opposite side.

Quick Release Side Panels

Lockable side panels can be removed easily for quick access to equipment and cabling.

Cable Access Openings

Slots in the bottom and top provide convenient cable routing to and from the enclosure.

Rack Mounting Compatibility

The CR6U61003 is compatible with all EIA-310 compliant 19″ equipment.

Adjustable Rack Angles

Vertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 20.3″. U rack units are numbered front and back for easy equipment installation.

Designed for Stability

A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.

Integrated Electrical Grounding

Grounding connections are located on the frame for facility ground.

Specifications

Features

Rack capacity: 6U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Metal
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Front door style: Grilled
Front door key lock: Yes
Side panel key lock: Yes
Rack rails: Yes
Adjustable mounting rails: Yes
Adjustable depth: Yes
Cable management: Yes
Mounting hole shape: Square
Assembly required: No
International Protection (IP) code: IP20
Preassembled: Yes
Certification: EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117; RoHS Compliant
