125V/1800J 515R, 6ft cord
- Surge Protection
- EMI/RFI Noise Filter
- LED Indicators
- Power Management Features
- Industrial-Grade Metal Housing
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Product Overview

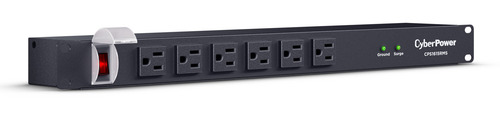

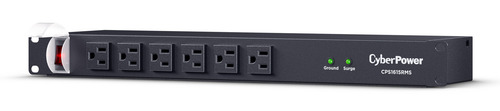

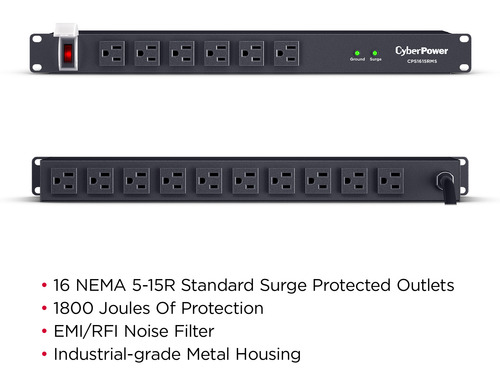

Engineered for the most demanding applications, the professional-grade Rackbar CPS1615RMS safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1615RMS also performs superbly for home office use, providing 1800 joules of protection, 15-Amp electrical capacity with circuit breaker, and 16 surge-protected outlets (6 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1615RMS has a 1U racksize and can be mounted horizontally.
Features of the CPS1615RMS include an EMI/RFI noise filter, industrial-grade metal housing, AC power cord (6 ft.).
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
EMI/RFI Noise Filter
Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
LED Indicators
Provides information about the model’s status: Power, Ground, and Surge.
Power Management Features
Includes network-grade plugs and outlets, an AC power cord.
Industrial-Grade Metal Housing
Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
Specifications
Power
- Surge energy rating
- 1800 J
- AC outlets quantity
- 16 AC outlet(s)
- AC outlet types
- NEMA 5-15R
- Nominal input voltage
- 125 VAC
- Peak current, normal mode
- 30000 A
- Peak current, common mode
- 30000 A
- USB charging
- No
- Clamping voltage
- 600 V
Ports & interfaces
- Power plug
- NEMA 5–15P
- Cordless
- No
Features
- Product colour
- Black
- Material
- Metal
- Housing material
- Metal
- Rack mounting
- Yes
- Rack capacity
- 1U
- EMI/RFI noise filtering
- Yes
- On/off switch
- Yes
- Over current protection
- Yes
- Cable management
- Yes
Weight & dimensions
- Weight
- 1.93 kg
- Cable length
- 1.8 m
- Width
- 483 mm
- Depth
- 117 mm
- Height
- 44 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 14999 m
Indication
- Surge indicator
- Yes
- LED indicators
- Power
Packaging data
- Package width
- 548.6 mm
- Package depth
- 174.8 mm
- Package height
- 54.9 mm
- Package weight
- 2.11 kg
Packaging content
- Cables included
- Power
