CyberPowerUninterruptible Power Supplies (UPSs)
Mini-tower, 12 Out, LCD, Serial/USB
- Battery Backup - Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection - Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Automatic Voltage Regulation (AVR) - AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- Multifunction, Color LCD - Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Data Line Protection - Prevents power surges that travel through coaxial and ethernet lines from causing damage to electronics.
- Line Interactive Topology - Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.5 kVA
- Output power
- 900 W
- Waveform
- Simulated sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 120 V
- Input frequency
- 57/63 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 1500 J
- Output power factor
- 0.6
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Overload alarm, Low battery alarm, Alarm when on battery, Fault
Ports & interfaces

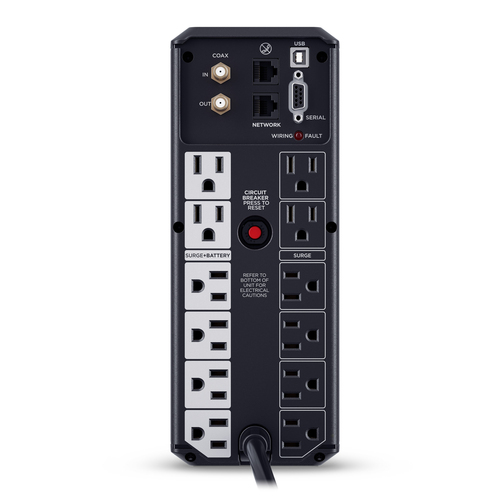

- AC outlet types
- NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 12 AC outlet(s)
- USB port
- Yes
- USB port type
- USB Type A/USB Type-C
- Ethernet LAN (RJ-45) ports
- 2
Battery
- Battery technology
- Lead-Acid
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Number of battery cells
- 2
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 12 min
- Battery recharge time
- 8 h
- Replacement battery cartridge
- RB1290X2E
Design
- Form factor
- Mini Tower
- Housing material
- Plastic
- Cable length
- 1.8 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Power, Fault
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15239 m
Certificates
- Certification
- RoHS UL1778 cUL 107 5th FCC DOC Class B
Weight & dimensions
- Width
- 100 mm
- Depth
- 350 mm
- Height
- 259 mm
- Weight
- 10.8 kg
