Home/Catalogue/CyberPower/BRG1500AVRLCD2
Drag to turn · 8 views
CyberPowerUninterruptible Power Supplies (UPSs)

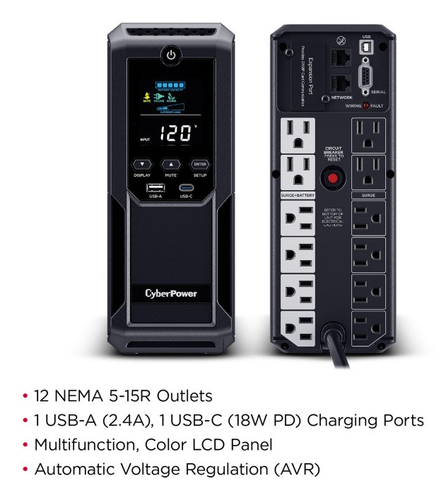

12 Outlet, LCD, Serial/USB, 3Yr Wty
- Automatic Voltage Regulation
- Management software
- SNMP/HTTP Remote management
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

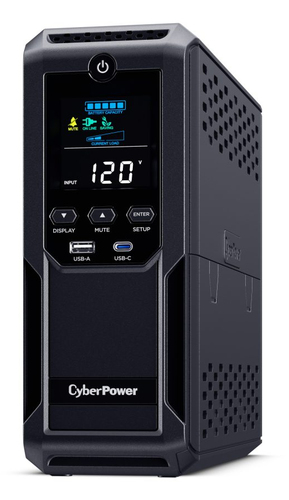

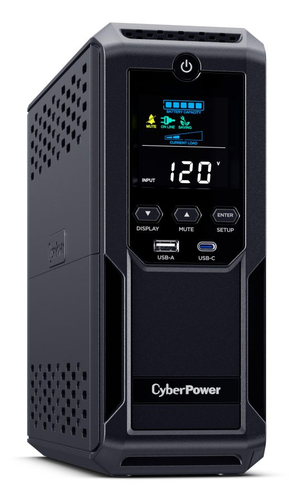

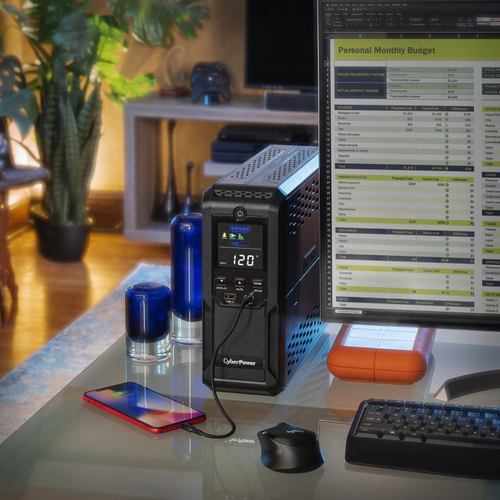

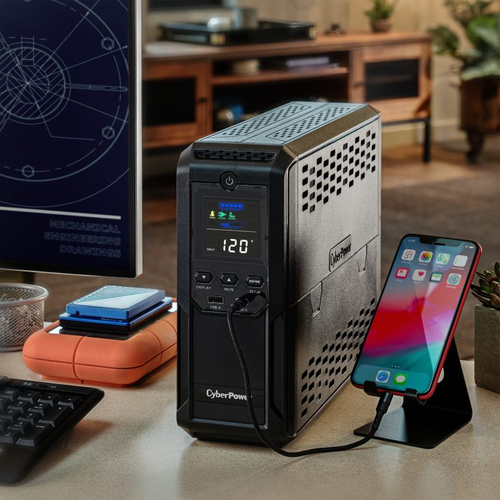

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.5 kVA
- Output power
- 900 W
- Waveform
- Simulated sine
- Input operation voltage (min)
- 57 V
- Input operation voltage (max)
- 120 V
- Input frequency
- 57/63 Hz
- Output operation voltage (min)
- 114 V
- Output operation voltage (max)
- 126 V
- Output frequency
- 60 Hz
- Output frequency regulation
- 1 Hz
- Output voltage regulation
- 5%
- Automatic Voltage Regulation (AVR)
- Yes
- Maximum current
- 15 A
- Surge energy rating
- 1500 J
- Response time
- 4 ms
- Heat dissipation
- 205 BTU/h
- Number of input phases
- 1
- Number of output phases
- 1
- Efficiency
- 95%
Ports & interfaces

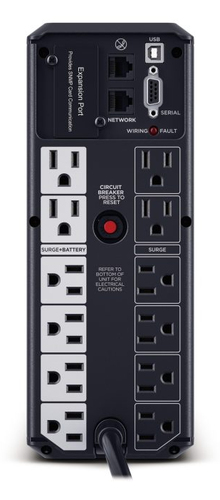

- AC outlet types
- NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 12 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-B
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- Network card slot
- Yes
- Ethernet LAN (RJ-45) ports
- 2
Battery
- Battery replacement accessibility
- End-user
- Battery capacity
- 18000 mAh
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 18 Ah
- Battery voltage
- 24 V
- Number of batteries supported
- 2
- Number of batteries included
- 2 pc(s)
- Typical backup time at full load
- 2 min
- Typical backup time at half load
- 12 min
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 8 h
- Cold start
- Yes
- Replacement battery cartridge
- RB1290X2E
Design
- Form factor
- Tower
- Housing material
- Plastic
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Power, Battery level, Charging, Status
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15239 m
Certificates
- Compliance certificates
- RoHS, UL, cUL, Federal Communications Commission (FCC)
Packaging content
- Batteries included
- Yes
- Cables included
- USB cable
- Manual
- Yes
- Quick installation guide
- Yes

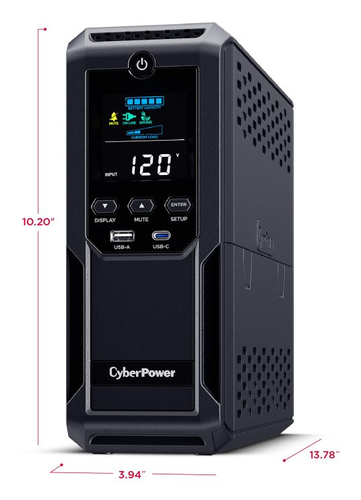

Weight & dimensions
- Width
- 100 mm
- Depth
- 350 mm
- Height
- 259 mm
- Weight
- 10.8 kg
Packaging data
- Package width
- 190 mm
- Package depth
- 450.1 mm
- Package height
- 368.1 mm
- Package weight
- 11.5 kg
- Package type
- Box
