CyberPowerUninterruptible Power Supplies (UPSs)
LCD Intelligent uninterruptible power supply (UPS) Line-Interactive 1.35 kVA 815 W 12 AC outlet(s)
- Battery Backup
- Surge Protection
- Automatic Voltage Regulation (AVR)
- Multifunction, Color LCD
- Data Line Protection
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1350AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1350AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.35 kVA
- Output power
- 815 W
- Waveform
- Sine
- Input operation voltage (max)
- 120 V
- Input frequency
- 57/63 Hz
- Maximum current
- 15 A
- Surge energy rating
- 1500 J
- Response time
- 4 ms
- Power factor
- 0.6
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Surge protection features
- Coax
- Power protection features
- Short circuit
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm, Fault, Alarm when on battery

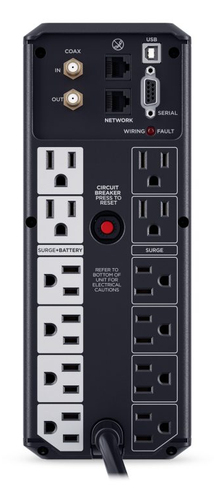

Ports & interfaces
- AC outlet types
- NEMA 5-15P
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 12 AC outlet(s)
- USB port
- Yes
- USB port type
- USB Type A/USB Type-C
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Number of batteries supported
- 2
- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 14 min
- Battery recharge time
- 8 h
Design
- Form factor
- Mini Tower
- Housing material
- Plastic
- Cable length
- 1.8 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Power, Fault
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- RoHS, UL, cUL, Federal Communications Commission (FCC)

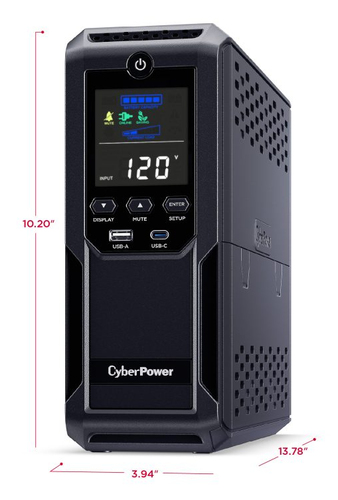

Weight & dimensions
- Width
- 100 mm
- Depth
- 259 mm
- Height
- 350 mm
- Weight
- 10.8 kg
Packaging data
- Package width
- 1841 mm
- Package depth
- 3619 mm
- Package height
- 4445 mm
- Package weight
- 11.1 kg
