Home/Catalogue/CyberPower/CP1000PFCLCDTAA
Drag to turn · 2 views
1000VA/600W, PFC Sine Wave Minitower UPS, 10 NEMA 515R, NEMA 515P, USB, Relay, PowerPanel Personal
- 1 kVA 600 W
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
PFC Sinewave UPS Systems — Federal Trade Agreement Act (TAA) Compliant UPS
The CyberPower Federal Trade Agreements Act (TAA) compliant CP1000PFCLCDTAA PFC Sinewave™ UPS System with pure sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its automatic voltage regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. Its patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
CyberPower’s PFC Sinewave UPS Systems with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower’s innovative PFC Sinewave UPS is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown or experience harmful stress when switching from AC power to UPS battery power.

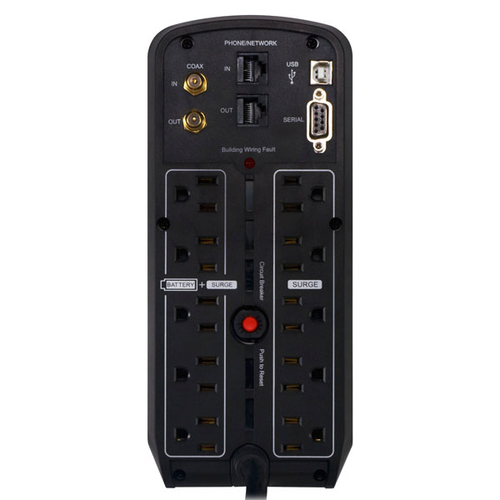

The CP1000PFCLCDTAA unit has a capacity of 1000VA/600Watts, ten (10) NEMA 5-15R receptacles and on (1) maintenance-free, user-replaceable 12V/9Ah batteries. The intelligent multi-function LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
PowerPanel® Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $350,000 Connected Equipment Guarantee.
Specifications
Features
- Output power capacity
- 1 kVA
- Output power
- 600 W
- Input operation voltage (min)
- 90 V
- Input operation voltage (max)
- 139 V
- Input frequency
- 60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Surge energy rating
- 1030 J
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Battery replacement
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- AC outlets quantity
- 10 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Serial ports quantity
- 1
- Modem (RJ-11) ports
- 2
- Ethernet LAN (RJ-45) ports
- 2
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of battery cells
- 1
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 9 min
- Battery recharge time
- 8 h
- Replacement battery cartridge
- BB Battery - HR9-12
Design
- Form factor
- Tower
- Cable length
- 1.5 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Power, Power fail
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 90%
Certificates
- Compliance certificates
- RoHS
- Certification
- UL1778, cUL 107.3, FCC DOC B
Weight & dimensions
- Width
- 99 mm
- Depth
- 264 mm
- Height
- 231 mm
- Weight
- 7.21 kg
Packaging data
- Bundled software
- PowerPanel Personal Edition
Other features
- Battery type
- 12V/9AH
- Over current protection
- Yes
