Extended Battery Module for Smart App Online OL8KRTHD and OL10KRTHD UPS Systems
- Extended Battery Module (EBM)
- Battery Equalization Technology
- Fast Charge Technology
- Smart Battery Management
- Hot-Swappable Batteries
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Product Overview

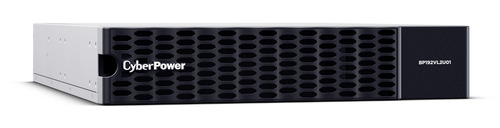

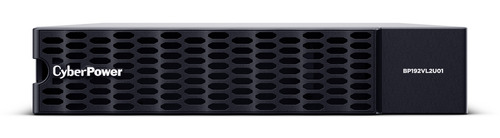

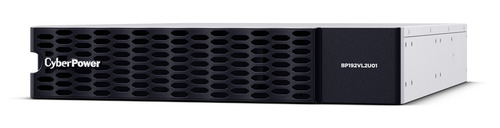

The CyberPower BP192VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL8KRTHD and OL10KRTHD.
The BP192VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.
Smart Battery Management
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.

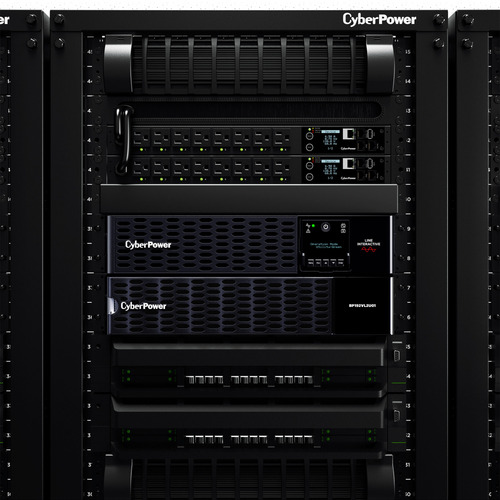

Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation.
Specifications
Features
- Battery voltage
- 192 V
- Number of batteries included
- 16 pc(s)
- Product colour
- Black
- Hot-swap battery
- Yes
- Compatibility
- OL8KRTHD, OL10KRTHD
Certificates
- Compliance certificates
- RoHS
- Certification
- UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
Weight & dimensions
- Weight
- 46 kg
- Width
- 433 mm
- Height
- 86 mm
- Depth
- 719 mm
Packaging data
- Package width
- 597.9 mm
- Package height
- 213.1 mm
- Package depth
- 1098 mm
- Package weight
- 54.1 kg
- Package weight
- 54.1 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
