ATENVideo Splitters

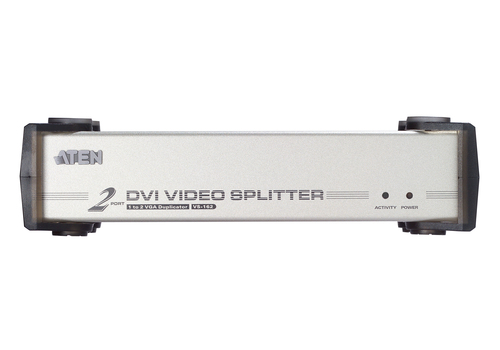

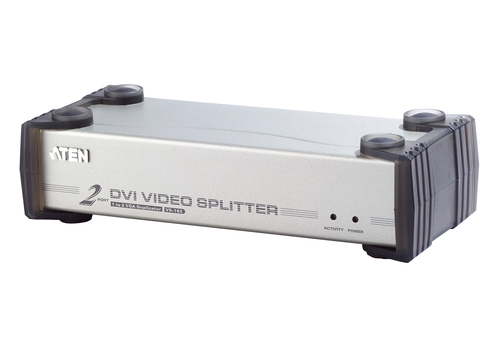

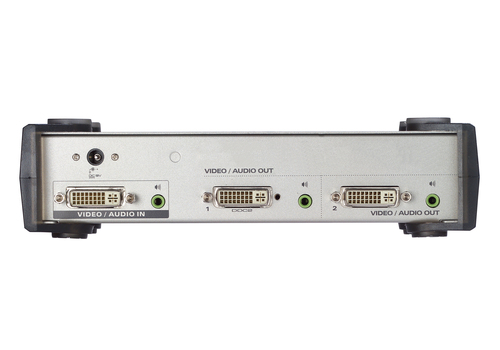

2Port DVI Video/Audio Splitter
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 8 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Specifications
Ports & interfaces
- Video port type
- DVI
- Video in
- 1 x DVI-I Female
- Video out
- 2x DVI-I
- Video ports quantity
- 3
- Audio ports quantity
- 3
- Connector(s)
- 2
- DC-in jack
- Yes
Features
- Product colour
- Black, Grey
- Maximum resolution
- 1920 x 1200 pixels
- 3D
- No
- Maximum operating distance
- 5 m
- Remote control included
- No
- Rack mounting
- Yes
- HDCP
- Yes
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- Power LED
- Yes
- LED indicators
- Activity
- Windows operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Mac compatibility
- Yes
Power
- AC input voltage
- 5.3 V
- Power consumption (typical)
- 2.36 W
- USB powered
- No
Weight & dimensions
- Dimensions (WxDxH)
- 210 x 88 x 55.5 mm
- Weight
- 620 g
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Technical details
- Audio input
- 1
- Audio output
- 2
- Resolution
- 1920 x 1200 pixels
- Connector type
- DVI-I Female
- Number of connectors
- 2
- Maximum cable length
- 5 m
- Cascadable
- Yes
- Maximum video resolution
- 1920 x 1200 pixels
- Exterior material
- Plastic
Logistics data
- Harmonized System (HS) code
- 85176990
