4K HDMI over Ip Extender Receiver Unit
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

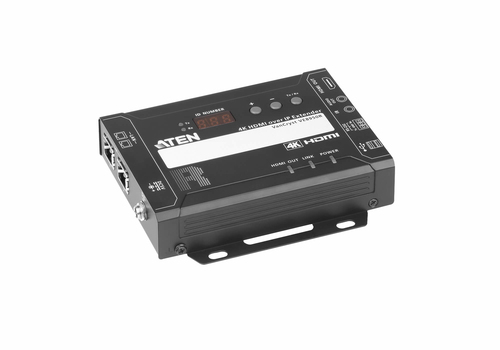

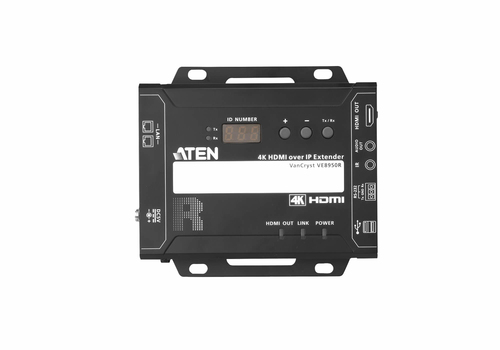

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: assets.aten.com/product/manual/Implementation_Guide.pdf
Specifications
Features
- Type
- AV receiver
- Maximum resolution
- 4096 x 2160 pixels
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 100 m
- Audio system
- stereo
- LED indicators
- Yes
- Supported video modes
- 1080p
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- HDCP
- Yes
- Material
- Metal
- Control type
- Buttons
- Firmware upgradeable
- Yes
- Baud rate
- 19.2 Kbit/s
- Impedance
- 100 Ω
- Daisy chain
- Yes
- Product colour
- Black
Ports & interfaces

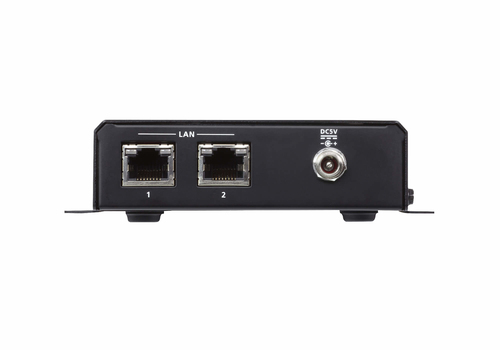

- Connectivity technology
- Wired
- RJ-45 input ports
- 1

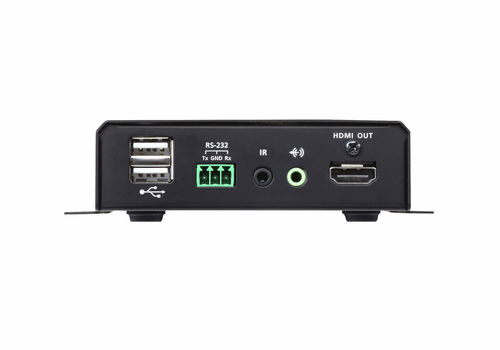

- Number of HDMI outputs
- 1
- USB ports quantity
- 1
- USB version
- 2.0
- USB connector type
- USB Type-A
- Video out
- 1
- Audio output
- 1
- Serial ports quantity
- 1
- Serial interface type
- RS-232
- Remote (IR) output
- 1
- DC-in jack
- Yes
Power
- Operating voltage
- 5 V
- Power consumption (typical)
- 4.53 W
- External power adapter
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 136 mm
- Depth
- 101 mm
- Height
- 29.6 mm
- Weight
- 490 g
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
Technical details
- Compliance certificates
- RoHS
