ATENAV Extenders
VE813A AV extender AV transmitter & receiver Black
- Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
- Anti-jamming – high quality video transmissions via HDBaseT technology that resists signal interference
- Supports Dolby True HD and DTS HD Master Audio
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
Specifications
Features
- Type
- AV transmitter & receiver
- Cable types supported
- Cat5e, Cat6, Cat6a, Cat7
- Maximum transfer distance
- 100 m
- LED indicators
- Yes
- Supported video modes
- 1080p, 2160p
- Bandwidth
- 10.2 Gbit/s
- Bandwidth
- 340 MHz
- HDCP
- Yes
- Material
- Metal
- 3D
- Yes
- Consumer Electronics Control (CEC) support
- Yes
- Impedance
- 100 Ω
- Product colour
- Black

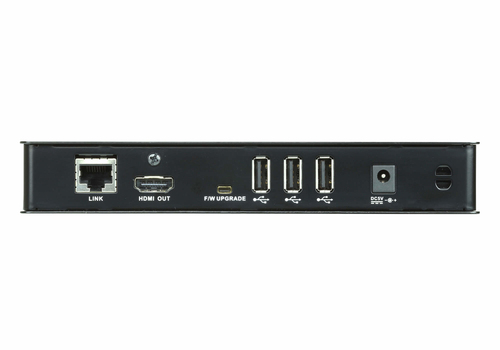

Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- Number of HDMI outputs
- 1
- USB ports quantity
- 4
- USB version
- 2.0
- USB connector type
- USB Type-A, USB Type-B
- DC-in jack
- Yes
Power
- Operating voltage (transmitter)
- 5 V
- Operating voltage (receiver)
- 5 V
- Power consumption (typical)
- 5.75 W
- Power consumption (receiver) (max)
- 13.25 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Dimensions (WxDxH)
- 117.9 x 182 x 28.7 mm
- Weight
- 1.23 kg
Packaging content
- AC adapter included
- Yes
- Cables included
- HDMI, USB
- Mounting kit
- Yes
Logistics data
- Products per master (outer) case
- 5 pc(s)
Downloads
