ATENAV Extenders

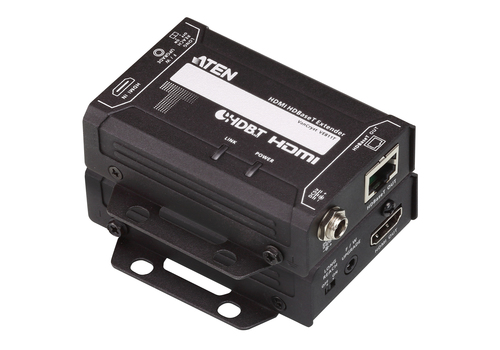

VE811 AV extender AV transmitter & receiver Black
- HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- HDMI (3D, Deep Color, 4K)
- HDCP 2.2 compatible
- Supports resolutions of up to 4K and 1080p
- Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 4096 x 2160 pixels
- Cable types supported
- Cat5e, Cat6, Cat6a
- Maximum transfer distance
- 150 m
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Bandwidth
- 10.2 Gbit/s
- HDCP
- Yes
- Material
- Metal
- 3D
- Yes
- Rack mounting
- Yes
- Firmware upgradeable
- Yes
- Consumer Electronics Control (CEC) support
- Yes
- Plug and Play
- Yes
- Impedance
- 100 Ω
- Product colour
- Black
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- HDMI in
- 1
- Number of HDMI outputs
- 1
- DC-in jack
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Receiver dimensions (WxDxH)
- 73 x 86.4 x 24.7 mm
- Receiver weight
- 170 g
- Transmitter dimensions (WxDxH)
- 73 x 86.4 x 24.7 mm
- Transmitter weight
- 160 g
