8Port 19 in Dual Rail LCD Cat5 KVM Switch with an Extra Console Port TAA Compliant

- A single console controls up to 8 computers

- Space-Saving RJ-45 connectors and Cat 5e/6 cabling

- KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types

- OSD tree structure makes finding and managing computers easy

- Conveniently located station and port selectors with LED displays to quickly switch to target computers

- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space

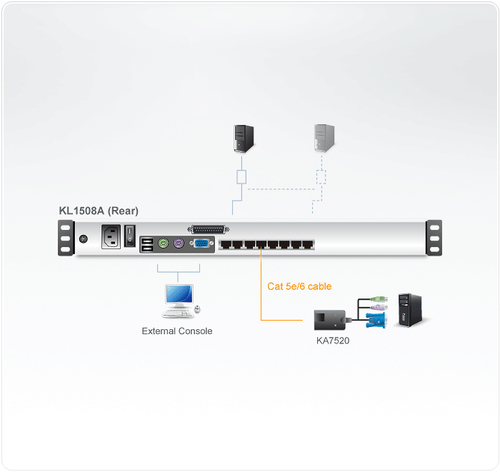

- Extra console port - manage computers in the LCD KVM switch from an external console

- (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)

- Supports external USB mouse

- Dual Rail - LCD monitor slides independently of the keyboard/touchpad

- LCD module rotates up to 120 degrees for a more comfortable viewing angle

- Console lock - enables the console drawer to remain securely locked away in position when not in use

- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions

- Daisy chain up to 31 additional KVM switches to control up to 256 computers

- Auto Scan mode enables continuous monitoring of user-selected computers

- Multiplatform support: PC, Mac, Sun and Serial

- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters

- Configure port access rights for users on a port - by - port basis

- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)

- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts

- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation

- LCD power button helps save energy and prolong displays’ life

- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

- Adapter ID

- Firmware Upgradeable

Package Contents

- 1x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit

- 1x Firmware Upgrade Cable
