Drag to turn · 5 views
ATENKVM Switches

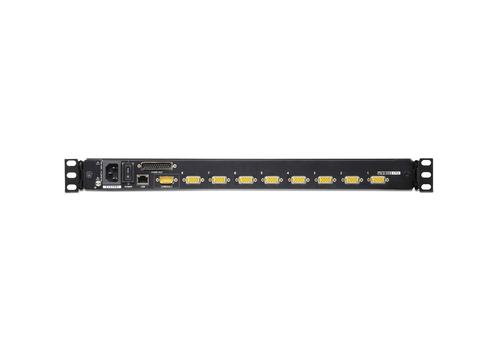

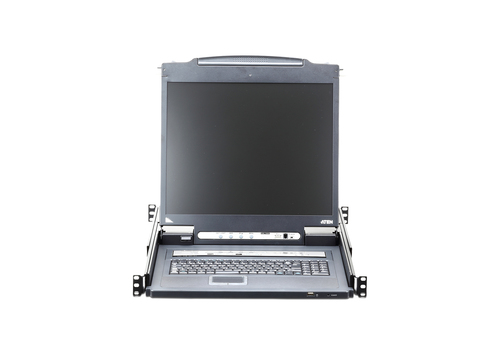

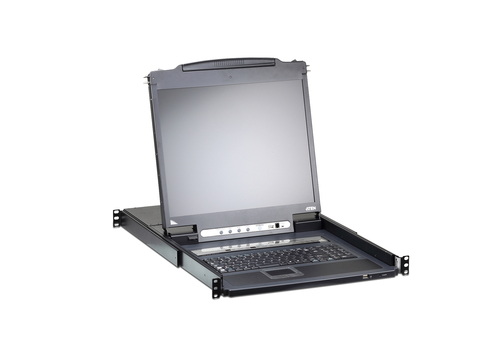

8Port 19 LCD Integrated IP USB/PS2 Combo KVM
- Rack mounting 1U Black
- Number of computers controlled: 128
- Keyboard port type: USB, PS/2 Mouse port type: USB
- Full HD 1920 x 1200 pixels
- Housing material: Metal, Plastic
- LCD Built-in display
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
19 1 Local/Remote Share Access 8-Port Single Rail LCD KVM over IP Switch
Specifications
Ports & interfaces
- Number of computers controlled
- 128
- Keyboard port type
- USB, PS/2
- Mouse port type
- USB
- Console ports
- SPHD-18
- USB 2.0 ports quantity
- 1
Network
- Ethernet LAN (RJ-45) ports
- 1
Performance
- HD type
- Full HD
- Maximum resolution
- 1920 x 1200 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 255 s
- Daisy chain
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- Housing material
- Metal, Plastic
- LED indicators
- Yes
Display
- Built-in display
- Yes
- Display
- LCD
- Display diagonal
- 48.3 cm (19")
Power
- Input voltage
- 100-240 V
- AC input frequency
- 50-60 Hz
- Input current
- 1 A
- Power consumption (typical)
- 25 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 689.2 mm
- Depth
- 480 mm
- Height
- 44 mm
- Weight
- 13.4 kg
Downloads
