ATENRack Consoles

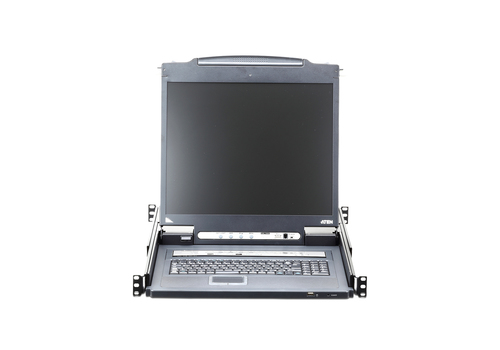

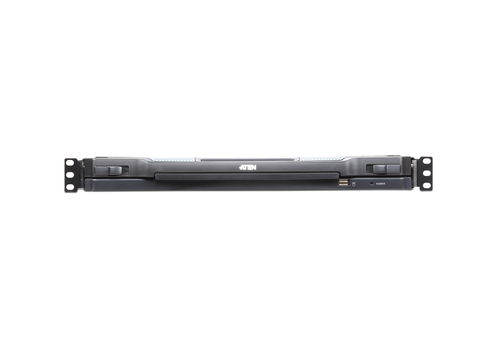

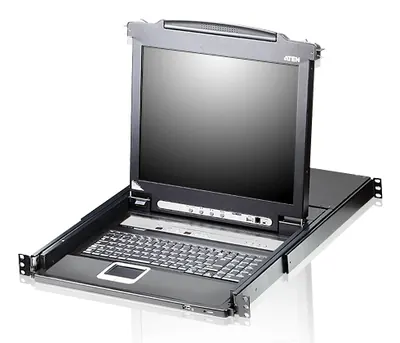

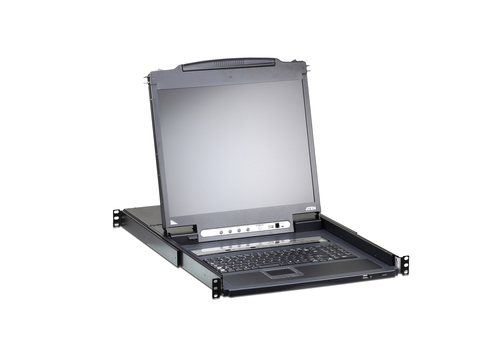

16-Port 19" LCD KVM Switch Over IP (USB - PS/2 VGA) with USB Peripheral port
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- 1 remote bus for KVM over IP access-allowing IT administrators to remotely monitor and control upto 16 servers
- Mouse DynaSync™-automatically synchronizes the local and remote mouse movements
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716I can control up to 16 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I, so that up to 256 computers can all be controlled from a single KVM console.
1x CL5716I LCD KVM over IP Switch with standard Rack Mount Kit
01
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Specifications
Display
- Display diagonal
- 48.3 cm (19")
- Display
- LCD
Technical details
- Product colour
- Black
- Operating relative humidity (H-H)
- 0 - 80%
- Maximum resolution
- 1920 x 1200 pixels
- Rack mounting
- Yes
- Number of computers controlled
- 1
- LED indicators
- Yes
Ports & interfaces

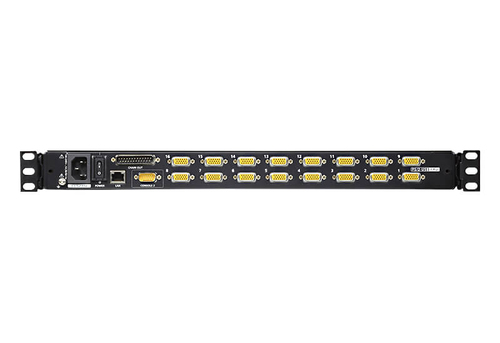

- VGA (D-Sub) ports quantity
- 16
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
Keyboard
- Keyboard language
- US English
- Keyboard layout
- QWERTY
- Hot keys
- Yes
Power
- Input current
- 1 A
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 689.2 mm
- Height
- 44 mm
- Depth
- 480 mm
- Weight
- 14.3 kg
Packaging data
- Package weight
- 17.3 kg
- Package width
- 668 mm
- Package depth
- 833 mm
- Package height
- 135 mm
Packaging content
- Quick installation guide
- Yes
- Manual
- Yes
Logistics data
- Master (outer) case net weight
- 14.3 kg
- Master (outer) case width
- 668 mm
- Master (outer) case length
- 833 mm
- Master (outer) case height
- 135 mm
- Master (outer) case gross weight
- 17.3 kg
- Products per master (outer) case
- 1 pc(s)
