16Port 17 LCD Integrated USB/PS2 Combo KVM with an Extra Console port and USB peripheral support

Part # CL5716MUPC 67279210059839.05 lb

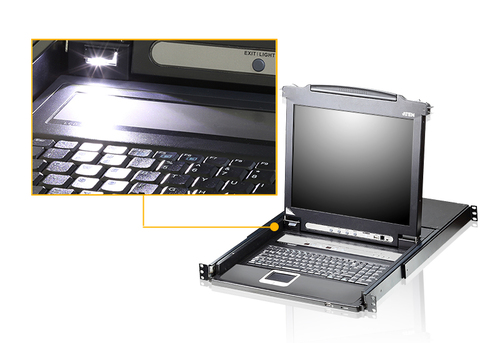

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader**
Space saving technology - up to two consoles (one bus) control up to 16 computers

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The CL5716M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716M can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716M, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Specifications

Ports & interfaces

Number of computers controlled: 16
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 16
Console ports: PS/2, VGA (D-Sub)

Performance

HD type: SXGA
Maximum resolution: 1280 x 1024 pixels
Video bandwidth: 75 Hz
Hot-Plug support: Yes
Daisy chain: Yes
Number of users: 5 user(s)
Firmware upgradeable: Yes

Design

Rack mounting: Yes
Product colour: Black
Push button: Yes
Hot keys: Yes
Keyboard language: Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, UK English, US English
