ATENKVM Switches
2-Port HD USB Cable Built-in KVM with Video Dynasync
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- HDMI ports quantity
- 2
- Console ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity
- 2
- Console HDMI ports quantity
- 1
- USB 2.0 Type-A hub ports quantity
- 4
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
Performance
- HD type
- WUXGA
- Maximum resolution
- 1920 x 1200 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 3,5,10,20 s
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Plastic
- Cable length
- 1.2 m
- Remote switch cable length
- 1.8 m
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 5 V
- Power consumption (typical)
- 0.72 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 82.4 mm
- Depth
- 66.5 mm
- Height
- 25.2 mm
- Weight
- 480 g
Packaging content
- Quick installation guide
- Yes
- Manual
- Yes
More in KVM Switch 1 to 2 port

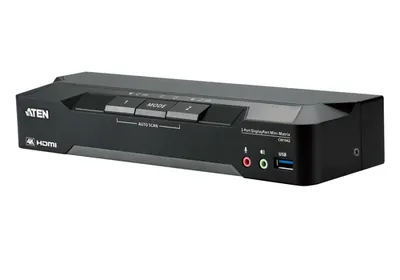

ATEN2-Port UHD 4K DP Port KVM with 2 CablesCS782DP
StarTech.comHDMI KVM switch operates and accesses two computers from one workstatiSV211HDUA4K
StarTech.com2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - Access two dualSV231DPDDUA2
StarTech.comThis 2 Port USB C KVM Switch toggles between two computers with one DiSV231DPUCA
StarTech.com2 Port USB HDMI KVM Switch with Audio and USB 2.0 HubSV231HDMIUA
ATEN2Port 4K DisplayPort Dual Display MiniMatrix KVM with Boundless SwitchCM1942

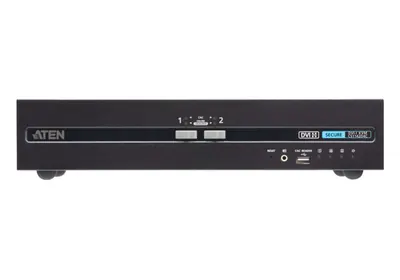

ATEN2Port USB DVI Dual Display PP4.0 Secure KVMCS1142D4

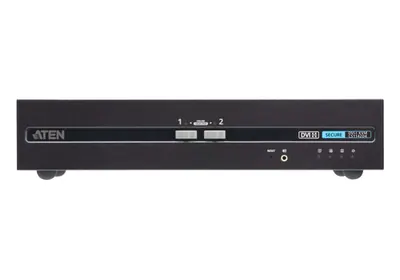

ATEN2Port USB DVI Dual Display PP4.0 Secure KVM w/ CAC SupportCS1142D4C
