2Port USB 3.0 DualDisplay KVMP
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)1
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

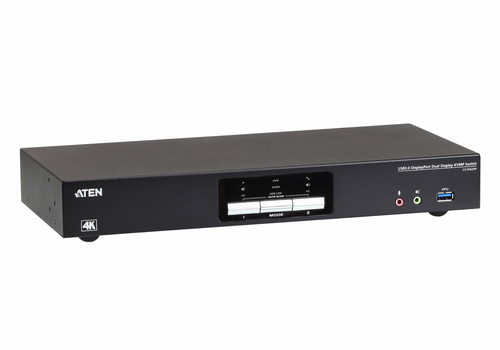

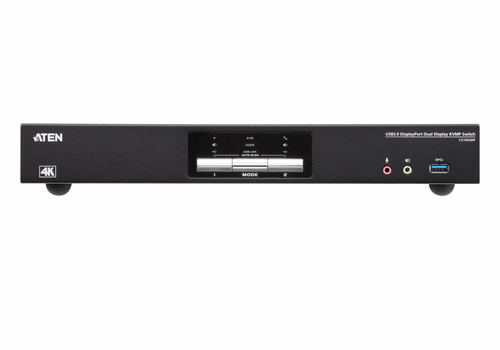

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.
Specifications

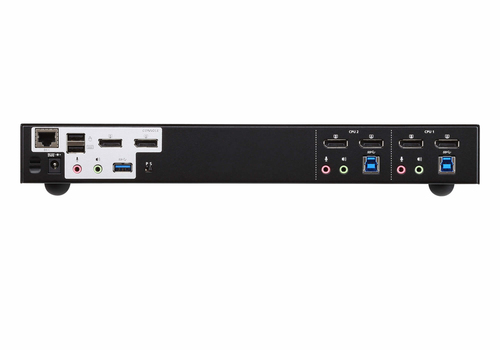

Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 6
- DisplayPort version
- 1.2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 2
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity
- 2
- USB hub
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- Headphone outputs
- 4
- Number of microphone inputs
- 4
- DC-in jack
- Yes
Network
- Ethernet LAN (RJ-45) ports
- 1
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 1,5,99 s
- Auto scan delay (min)
- 1 s
- Auto scan delay (max)
- 99 s
- HDCP
- Yes
- Daisy chain
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Metal
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 12 V
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 156.6 mm
- Depth
- 335 mm
- Height
- 44 mm
- Weight
- 1.54 kg
Packaging content
- Cables included
- Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
- Manual
- Yes
- AC adapter included
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
