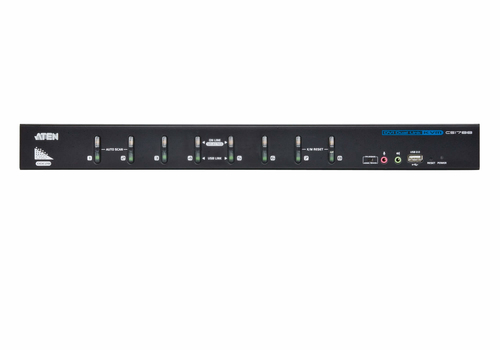

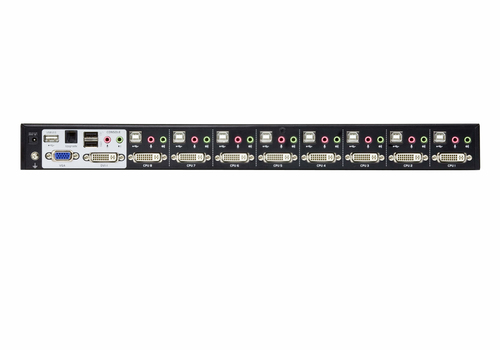

8port DVI DualLink USB KVM with Audio Support TAA Compliant
- One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
- Supports a digital (DVI) or analog (VGA) video output
- Cascadable to three levels – control up to 512 computers
- Multi-Display feature – stack up to four CS1788 units and display video from up to four monitors (dual display / triple display / quad display)
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
Furthermore, the CS1788 comes with ATEN´s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.
The CS1788 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).
Specifications
Ports & interfaces
- Number of computers controlled
- 512
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA/DVI-I
- DVI-I ports quantity
- 9
- VGA (D-Sub) ports quantity
- 1
- Console ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
- Console USB ports quantity
- 2
- USB 2.0 ports quantity
- 10
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 8
- DC-in jack
- Yes
Performance
- Maximum resolution
- 2560 x 1600 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 1,255 s
- HDCP
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- Housing material
- Metal
- Cascadable
- Yes
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
- On Screen Display (OSD)
- Yes
Power
- Power source
- DC
- Input voltage
- 5.3 V
- Power consumption (typical)
- 6.47 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 437.2 mm
- Depth
- 161.2 mm
- Height
- 44 mm
- Weight
- 2.8 kg
Packaging content
- Cables included
- KVM
- Manual
- Yes
- AC adapter included
- Yes
- Rack mount kit
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
