CS1768 KVM switch Blue

Part # CS1768UPC 6727920030118.93 lb

One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
KVM console supports a digital (DVI-D) or an analog (VGA) video output
Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible
Cascadable to three levels – control up to 512 computers
Multi-Display mode – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)

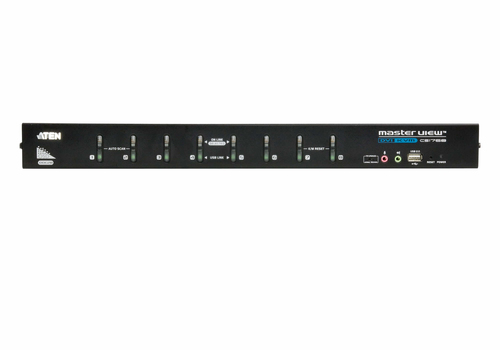

Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management.

In addition, the CS1768 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS1768 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.

The CS1768 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).

Specifications

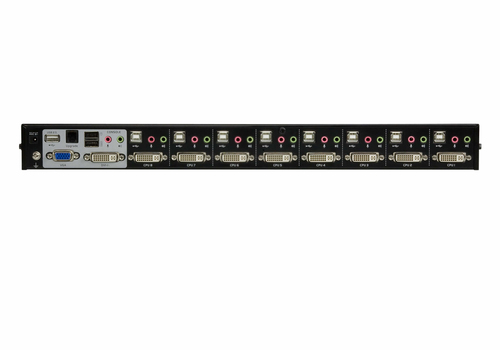

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB
Mouse port type: USB
Video port type: DVI-I
DVI-I ports quantity: 8
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 10
Headphone outputs: 8
Number of microphone inputs: 8

Performance

Maximum resolution: 2048 x 1536 pixels
Maximum digital resolution: 1920 x 1200 pixels
Maximum analog resolution: 2048 x 1536 pixels
Scan interval: 255 s

Design

Product colour: Blue
Housing material: Metal
LED indicators: Yes
Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS
