16-port 1 user(1 IP or 1 Local) IP KVM

Management

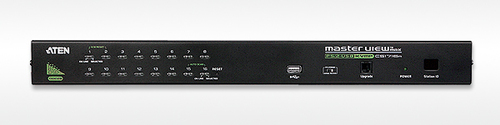

- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

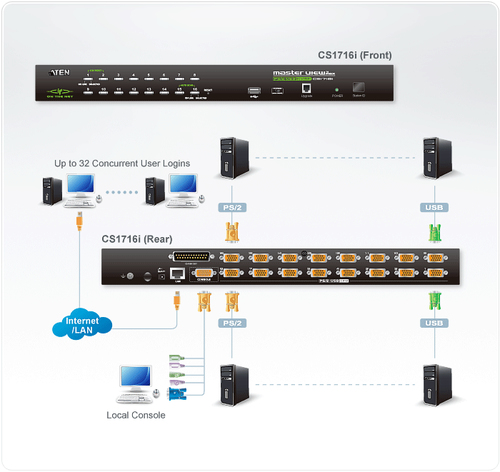

- Up to 32 concurrent logins

- Multilanguage web UI support featuring a tree-structured local and remote OSD

- Adjustable video quality for flexible adaptation to diverse network environments

- Auto Scan feature for monitoring user-selected computers

- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).

- Firmware upgradable

- Backup and restore configuration and user account settings

- Event logging

- Enable/disable browser access

- IPv6 capable

Ease-to-Use Interface

- Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (windows, Mac OS X, Linux, Sun)

- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

- Port names automatically reconfigured when station sequence is changed

- Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view

- Windows client and Java client software support; Java client works with all operating systems

Advanced Security

- Secure keyboard/mouse/video transmission via RC4 128 bit encryption

- 128 bit SSL browser access

- Two level password security - up to 64 user accounts with separate profiles for each

- External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory

- Support for IP/MAC Filter

- Local and remote access logged and authenticated

Virtual Remote Desktop

- Resizable remote desktop window

- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
