Drag to turn · 4 views
ATENKVM Switches
8-Port PS/2 & USB IP KVM
- Black
- Number of computers controlled: 8
- 2048 x 1536 pixels
- Housing material: Metal
- 9.5 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Features
01
- Management
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
02

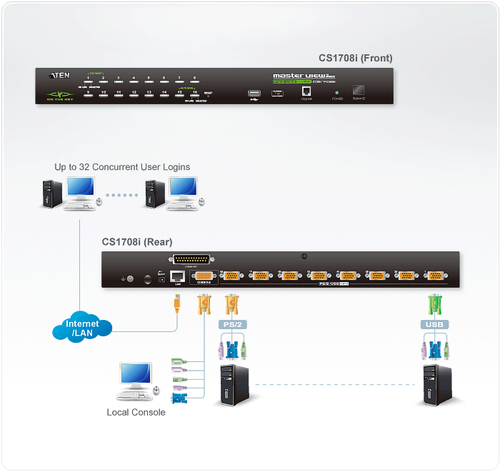

- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
03
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
04
- Firmware upgradable
- Backup and restore configuration and user account settings
05
- Event logging
- Enable/disable browser access
06
- IPv6 capable
07
Package Content
08
1x CS1708i KVM Switch
1x 2L-5202P PS/2 KVM Cable
09
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
10
1x Mounting Kit
11
1x Foot Pad Set (4 pcs)
1x 0AD6-1605-24EG Power Adapter
12
1x Software CD
1x User Instructions
Specifications
Ports & interfaces
- Number of computers controlled
- 8
- USB 2.0 ports quantity
- 1
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Security algorithms
- 802.1x RADIUS, SSL/TLS
Performance
- Maximum resolution
- 2048 x 1536 pixels
- Scan interval
- 255 s
- Number of users
- 32 user(s)
Design
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Yes
Display
- Built-in display
- No
Power
- Power consumption (typical)
- 9.5 W
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 160 mm
- Depth
- 433 mm
- Height
- 44 mm
- Weight
- 2.81 kg
Packaging content
- Cables included
- KVM
- Manual
- Yes
- AC adapter included
- Yes
Other features
- Connectivity technology
- Wired
- I/O ports
- 1 x SPHD-18 M 8 x SPHD-17 F 1 x DB-25 M 1 x DC 1 x RJ-45 F 1 x RJ-11 1 x USB A
- Ports quantity
- 8
- Compatible operating systems
- Windows, Mac OS X, Linux, Sun
- Colour depth
- 24 bit
