ATENKVM Switches
8Port USB/PS2 combo KVM with USB Peripheral Support
- One USB-PS/2 console controls up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals *
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

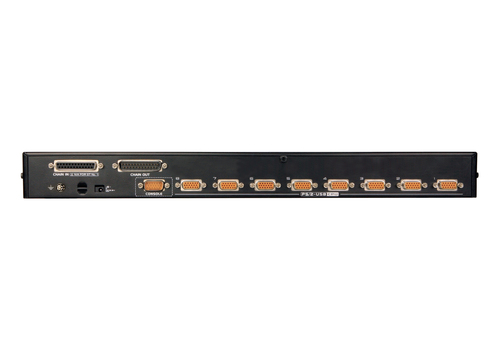

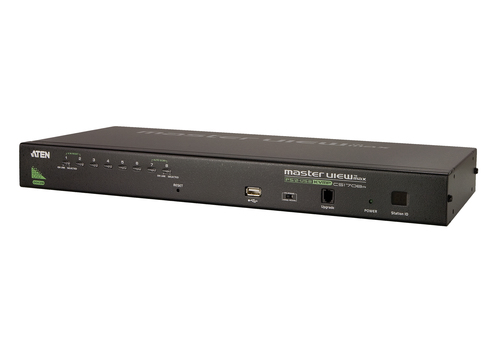

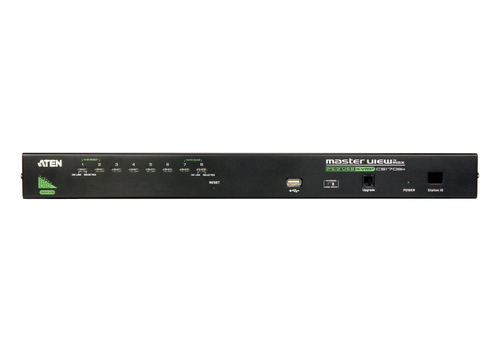

The CS1708A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
Specifications
Ports & interfaces
- Number of computers controlled
- 256
- Keyboard port type
- USB, PS/2
- Mouse port type
- USB, PS/2
- Video port type
- VGA
- Console ports
- USB A, VGA (D-Sub)
- Console USB ports quantity
- 1
- USB connector type
- USB Type-A
- DC-in jack
- Yes
Performance
- Maximum resolution
- 2048 x 1536 pixels
- Scan interval
- 1,255 s
- DDC2B support
- Yes
- Hot-Plug support
- Yes
- Daisy chain
- Yes
- Firmware upgradeable
- Yes
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
- On Screen Display (OSD)
- Yes
Power
- Power source
- DC
- Input voltage
- 5.3 V
- Power consumption (typical)
- 5 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Other operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 437.2 mm
- Depth
- 159.9 mm
- Height
- 44 mm
- Weight
- 2.66 kg
Packaging content
- Cables included
- KVM
