8Port Dual Rail 19 LCD Combo KVM TAA Compliant

- Integrated KVM console with 19" LCD in a Dual Rail housing

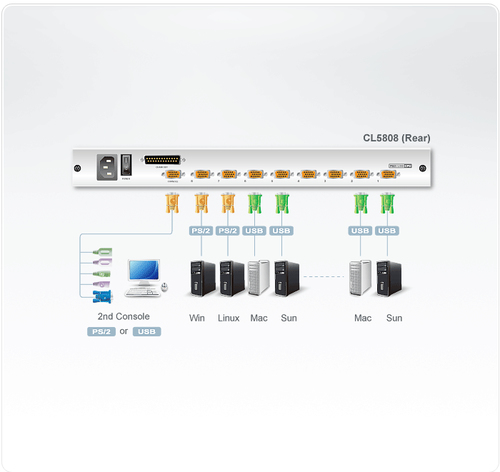

- Space saving technology - up to two consoles (one bus) control up to 8 computers

- Daisy-chain up to 31 additional units*– control up to 256 computers from two consoles (one bus)

- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

- Supports USB peripherals for computers connected to the local station

- LCD module rotates up to 120 degrees for a more comfortable viewing angle

- Console Lock - enables the console drawer to remain securely locked away in position when not in use

- Multiplatform support - Windows, Linux, Mac, and Sun

- Supports multimedia USB keyboards for PC, Mac and Sun

- Auto PS/2 and USB interface detection

- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)

- With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A

- Supports external USB mouse

- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz

- No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus

- Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position

- Port names automatically reconfigured when station sequence is changed

- Two level password security - only authorized users can view and control computers

- LCD power button helps save energy and prolong display's life

- Supports one administrator and four user accounts with separate profiles

- Auto Scan mode enables continuous monitoring of user-selected computers

- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation

- Hot pluggable - add or remove computers without having to power down the switch

- Beeper on/off via hotkey and OSD

- Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable

Package Contents

- 1x CL5808 KVM Switch with Standard Rack Mounting Kit

- 2x 2L-5302UP PS/2 USB KVM Cables
