ATENKVM Extenders

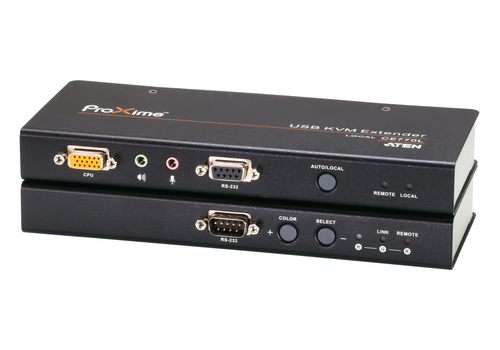

1000 ft. USB Console Extender with Audio and Serial Support
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console.
The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
Specifications
Features
- Type
- Transmitter & receiver
- Connectivity technology
- Wired
- Maximum transfer distance
- 300 m
- Cable types supported
- Cat5
- Rack mounting
- Yes
- KVM port selection
- Push-buttons
- Product colour
- Black
- Material
- Metal
Transmitter
- Transmitter local keyboard/mouse port type
- USB
Receiver
- Receiver local keyboard/mouse port type
- USB
Ports & interfaces
- USB 2.0 ports quantity
- 2
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Technical details
- Dimensions (WxDxH)
- 202 x 86.4 x 25 mm
- Maximum resolution
- 1920 x 1200 pixels
- Weight
- 490 g
