ATENKVM Extenders

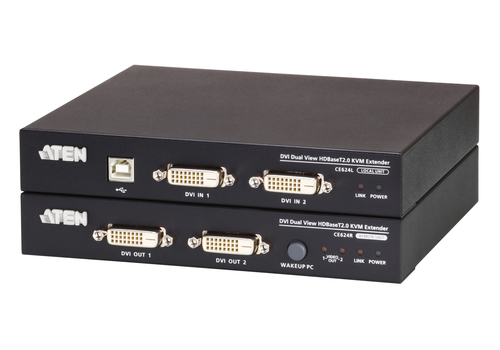

USB Dual DVI HDBaseT 2.0 KVM Extender up to 330 ft w/ 1920x1200
- Allows DVI Dual View access to a computer and KVM control from a remote console
- HDBaseT™ 2.0 connectivity technology
- • Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
- • EDID Buffer for smooth power-up and the highest quality display
- • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Long distance superior video quality
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
Specifications
Features
- Type
- Transmitter & receiver
- Connectivity technology
- Wireless
- Maximum transfer distance
- 150 m
- Cable types supported
- Cat5e, Cat6, Cat6a
- KVM port selection
- Hotkeys, Push-buttons
- Product colour
- Black
- Material
- Metal
Transmitter
- Transmitter video port type
- DVI-D
- Transmitter local video port
- Yes
- Transmitter local video port type
- DVI-D
- Transmitter local keyboard/mouse port type
- USB
Receiver
- Receiver local video port type
- DVI-D
- Receiver local keyboard/mouse port type
- USB
Weight & dimensions
- Transmitter width
- 15.9 cm
- Transmitter depth
- 17.4 cm
- Transmitter height
- 2.88 cm
- Transmitter weight
- 800 g
- Receiver width
- 15.9 cm
- Receiver depth
- 17.4 cm
- Receiver height
- 2.88 cm
- Receiver weight
- 810 g
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Logistics data
- Harmonized System (HS) code
- 84733080
Downloads
