Drag to turn · 8 views
ATENKVM Extenders
Mini USB DVI HDBaseT KVM Extender up to 330ft w/Audio
- Supports HDBaseT™ technology
- • Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable
- • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- • Status detection and LED indication for HDBaseT™ signal transmission
- Long distance with superior video quality – up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

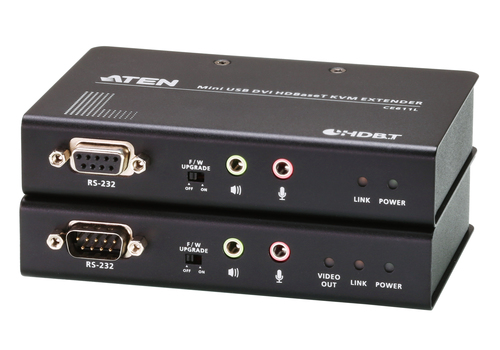

The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Specifications
Features
- Type
- Transmitter & receiver
- Connectivity technology
- Wired
- Maximum transfer distance
- 100 m
- Cable types supported
- Cat6, Cat6a
- Maximum digital resolution
- 1920 x 1200 pixels
- Supported resolutions
- 1920x1200 1920x1080 1600x1200
- Product colour
- Black
- Material
- Metal
- LED indicators
- Yes
- Certification
- RoHS
Transmitter
- Transmitter video port type
- DVI-D
- Transmitter local keyboard/mouse port type
- USB
- RJ-45 ports quantity (transmitter)
- 1
Receiver
- Receiver local video port type
- DVI-D
- Receiver local keyboard/mouse port type
- USB
- RJ-45 ports quantity (receiver)
- 1
Ports & interfaces
- USB data transfer rates
- 480 Mbit/s
- RS-232 ports
- 2
- RJ-45 ports quantity
- 2
- PC Audio in
- Yes
- PC Audio out
- Yes
Power
- Power consumption (transmitter) (max)
- 2.494 W
- Power consumption (receiver) (max)
- 4.816 W
Weight & dimensions
- Transmitter width
- 12.8 cm
- Transmitter depth
- 8.69 cm
- Transmitter height
- 2.5 cm
- Transmitter weight
- 350 g
- Receiver width
- 12.8 cm
- Receiver depth
- 8.69 cm
- Receiver height
- 2.5 cm
- Receiver weight
- 340 g
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
Other features
- Firmware upgradeable
- Yes
Technical details
- Power requirements
- DC
