ATENKVM Extenders
DVI HDBaseT KVM Extender with ExtremeUSB
- Uses a single Cat 5e cable to connect the local and remote units
- Allows access to a computer or KVM installation from a remote console
- Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
- Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Supports USB 1.1 web cameras
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

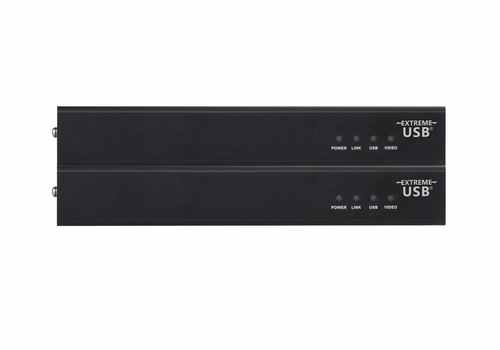

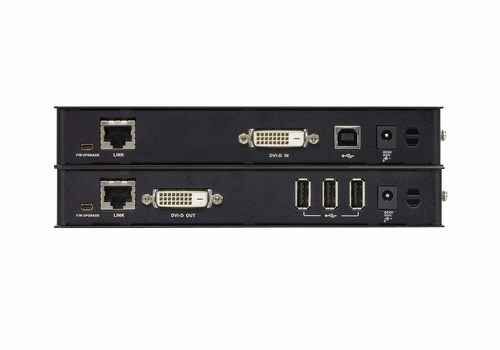

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
Specifications
Features
- Type
- Transmitter & receiver
- Connectivity technology
- Wired
- Maximum digital resolution
- 1920 x 1200 pixels
- Material
- Metal
- LED indicators
- Link, Power, USB, Video
Transmitter
- RJ-45 ports quantity (transmitter)
- 2
Ports & interfaces
- USB 2.0 ports quantity
- 3
- USB data transfer rates
- 40 Mbit/s
Power
- Power consumption (transmitter) (max)
- 15 W
Weight & dimensions
- Transmitter width
- 11.8 cm
- Transmitter depth
- 18.2 cm
- Transmitter height
- 2.87 cm
- Transmitter weight
- 620 g
- Receiver width
- 11.8 cm
- Receiver depth
- 18.2 cm
- Receiver height
- 2.87 cm
- Receiver weight
- 620 g
Packaging content
- AC adapter included
- Yes
- Cables included
- DVI, USB
- Manual
- Yes
- Mounting bracket(s) included
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Other features
- Firmware upgradeable
- Yes
Technical details
- Video in
- DVI-D
