ASUS ROGSTRIX1000GAURAGAMING Drag to turn · 11 views
ASUSPower Supply Units

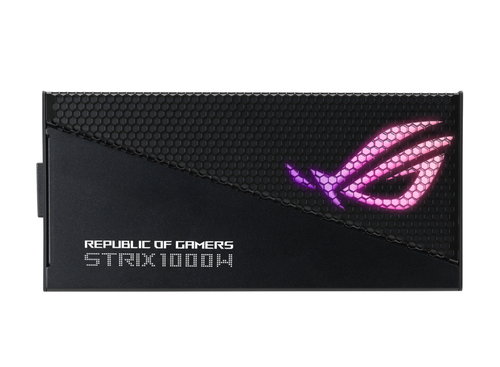

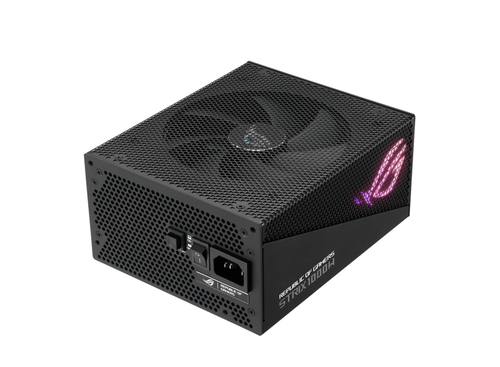

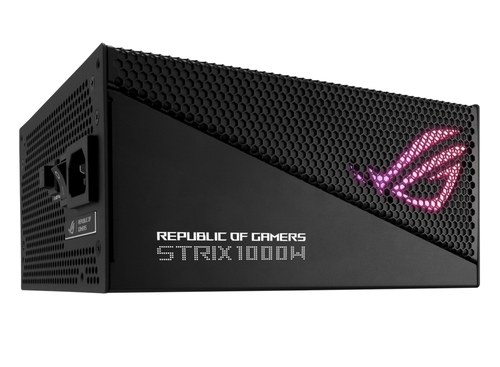

ROG STRIX 1000W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black

Part # ROGSTRIX1000GAURAGAMINGUPC 195553973724Warranty: 10-year worldwide warranty5.51 lb

  • 1000 W 100 - 240 V
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active
  • Black
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

ROG Strix Gold Aura Edition

01

Exude Power

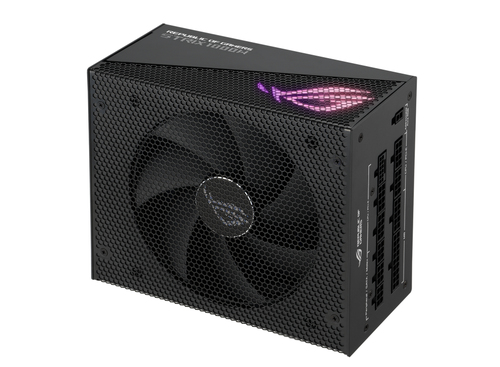

The ROG Strix 1000W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.

02

Aluminum Case

03

Built to run cool

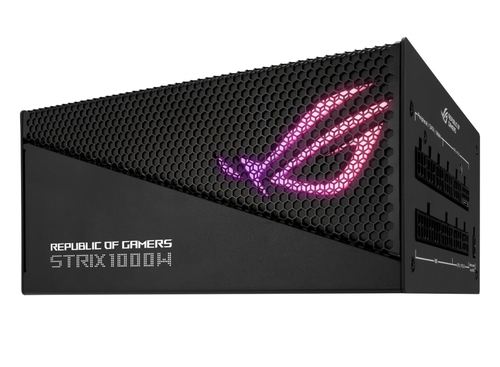

The ROG Strix 1000W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.

80 Plus Gold Certification

04

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

05

Aura Sync

06

Outshine the competition

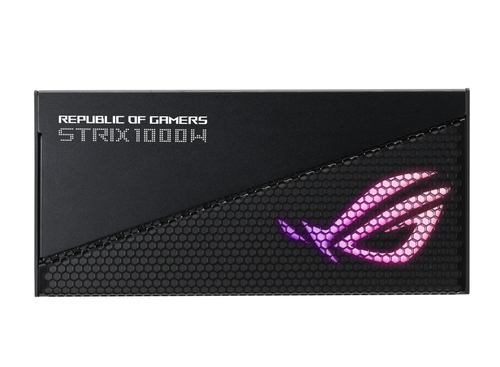

Addressable RGB lighting is built right in to the ROG Strix 1000W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.

*If the connector cable is not used, the default color effect is rainbow.

*To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

Specifications

Power

Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
996.6 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
83.3 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage

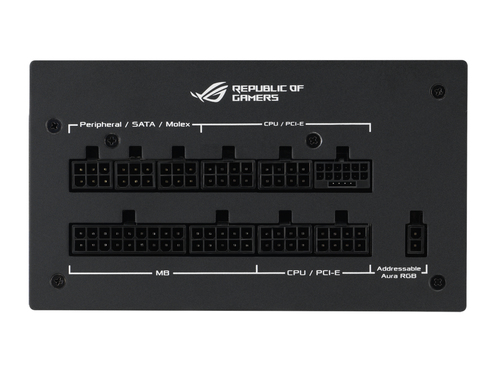

Ports & interfaces

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
5
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)
4
Peripheral (Molex) power cable length
400,150 mm
PCI Express power connectors (8-pin)
4
PCI Express power connectors (16-pin)
1
PCI Express power cable length
70 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
65 cm
Cabling type
Fully-Modular

Performance

80 PLUS certification
80 PLUS Gold
Purpose
PC
Power supply unit (PSU) form factor
ATX
ATX version
3.0

Design

Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
Fan location
Top
Illumination
Yes

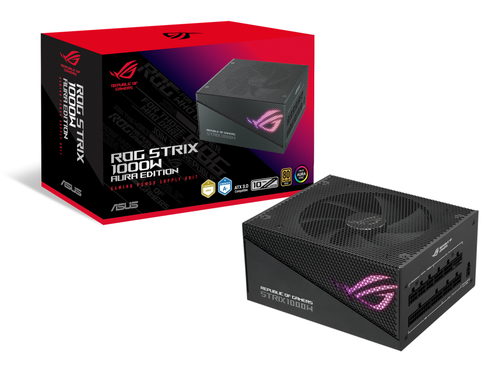

Packaging content

Cables included
CPU, PCIe, SATA, Peripheral (Molex)

Certificates

Compliance certificates
RoHS

Weight & dimensions

Width
180 mm
Depth
150 mm
Height
86 mm
Weight
3.03 kg
