ROG LOKI SFX-L 850W Platinum White Edition power supply unit 20+4 pin ATX
- 850 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC SFX-L 80 PLUS Platinum
- Active 12 cm
- White
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ROG Loki 850W Platinum White Edition
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

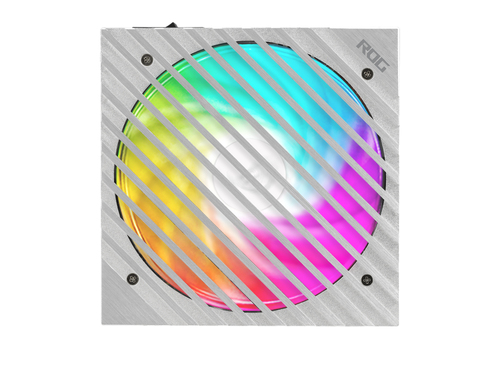

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Specifications
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 110 W
- Combined power (+12V)
- 850 W
- Combined power (+5V)
- 110 W
- Combined power (-12V)
- 9.6 W
- Combined power (+5Vsb)
- 12.5 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70.8 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.8 A
- Max output current (+5Vsb)
- 2.5 A
- Power protection features
- Over current, Over power, Over voltage, Short circuit, Under voltage

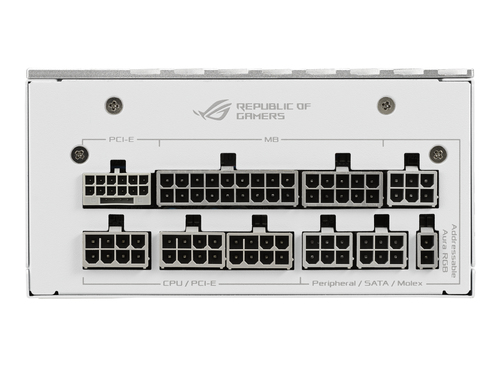

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 45 cm
- Number of SATA power connectors
- 6
- SATA power cable length
- 100,200,300 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 100,300 mm
- PCI Express power connectors (8-pin)
- 3
- PCI Express power cable length
- 45 cm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 55 cm
- Cabling type
- Fully-Modular
Performance
- 80 PLUS certification
- 80 PLUS Platinum
- Purpose
- PC
- Power supply unit (PSU) form factor
- SFX-L
- ATX version
- 3.0
- Silent mode
- Yes
Design
- Product colour
- White
- Cooling type
- Active
- Fan diameter
- 12 cm
- Number of fans
- 1 fan(s)
- Fan location
- Top
- Illumination
- Yes
Packaging content
- Cables included
- CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 125 mm
- Depth
- 125 mm
- Height
- 63.5 mm
- Weight
- 1.81 kg
Downloads
