Redundant Power Supply Unit for MCM15-MEDIA-CHASSIS, 130W AC, 100-240V Input, Tool-Free
- 130W AC redundant power module ensures continuous operation for the MCM15-MEDIA-CHASSIS (19in) delivering reliable performance for enterprise campus and ISP environments
- Installs easily into the chassis' redundant slot providing automatic failover power and maintaining seamless operation with zero downtime
- Ideal for mission-critical networks
- Supports 100-240V AC with plug-and-play tool-free slot-in design powering up to 15 media converter slots
- Chassis airflow for fanless cooling
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Add a second power supply to your media chassis to connect a redundant power supply for uninterrupted operation.
Continuous, Reliable Power
The redundant power supply unit delivers 130W AC to maintain uninterrupted operation across all fifteen media converter slots. It is ideal for enterprise, ISP, and metro networks where continuous uptime and stable performance are essential.
Hot-Swappable Redundancy

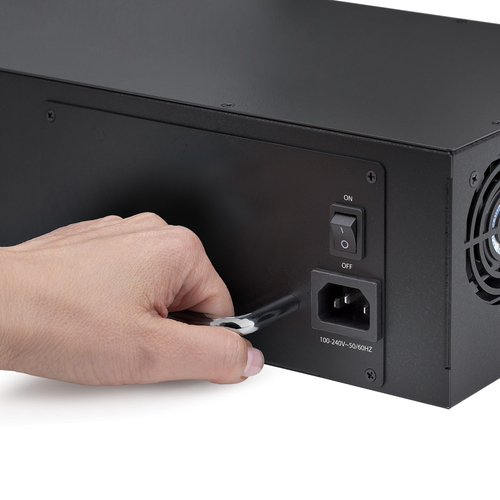

The unit installs easily into the redundant power bay of the MCM15-MEDIA-CHASSIS, providing automatic failover protection during replacement or failure. Hot-swappable design enables true zero-downtime power management for mission-critical systems.
Universal Input and Fanless Efficiency
Supporting 100-240V AC input, the power supply offers global compatibility with plug-and-play, tool-free installation. Fanless cooling uses chassis airflow for quiet, reliable operation across a wide temperature range.
TAA-Compliant and Built for Longevity
Fully TAA-compliant and engineered for durability, the power supply ensures dependable performance for high-density fiber and media-conversion systems in data centers, metro backbones, and other critical networks.
Specifications
Power
- Total power
- 130 W
- AC input voltage
- 100 - 240 V
- Input current
- 2.5 A
Performance
- Purpose
- Network media converter
- Mean time between failures (MTBF)
- 50000 h
- Compatible products
- MCM15-MEDIA-CHASSIS
Design
- Product colour
- Black
- Number of fans
- 0 fan(s)
Operational conditions
- Operating temperature (T-T)
- -40 - 80 °C
- Storage temperature (T-T)
- -40 - 80 °C
- Operating relative humidity (H-H)
- 10 - 95%
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Weight & dimensions
- Width
- 50.8 mm
- Depth
- 101.6 mm
- Height
- 25.4 mm
Packaging data
- Manual
- Yes
- Package width
- 215 mm
- Package depth
- 220 mm
- Package height
- 102 mm
- Package weight
- 300 g
Logistics data
- Master (outer) case width
- 330 mm
- Master (outer) case length
- 580 mm
- Master (outer) case height
- 510 mm
- Products per master (outer) case
- 14 pc(s)
Other features
- Product type
- Power supply unit (PSU)
Downloads
More in Accessories
TP-Link900W AC Power Supply ModuleSPEC: Up to 900 watts output power, Steel CPSM900-AC
TP-LinkOmada 1 Meter 25G SFP28 Direct Attach CableSPEC: Up to 1 m Distance, SSM6220-1M
TP-LinkPole/Wall Mount Kit for Outdoor Access PointDimensions: 330.5 172.5 49APM-200

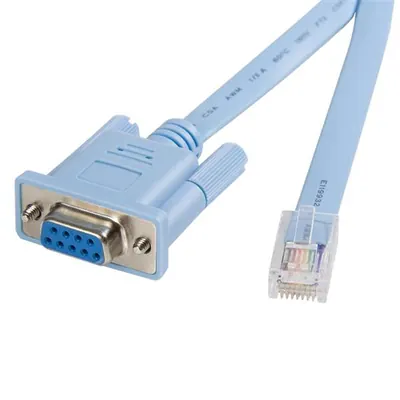

StarTech.comThis 6ft Cisco Console Management Cable is designed as a replacement cDB9CONCABL6
