ROG Thor 3000W Titanium III Edition 20 power supply unit 20+4 pin ATX ATX Black

Part # ROG-THOR-3000T3-GAMINGUPC 19929158726713.85 lb

3000 W 100 - 240 V
Motherboard power connector: 20+4 pin ATX
PC ATX 80 PLUS Platinum
Active
Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

ROG Thor 3000W Titanium III EDITION 20

Innovate. Perform. Dominate.

For two decades, ROG has stood at the forefront of gaming innovation, pushing boundaries and defining excellence. To commemorate this monumental 20th anniversary, ROG proudly unveils a special selection of limited-edition ROG components and gear featuring an alternative colorway and leading innovations. More than an aesthetic, this colorway reflects core values that are a testament to an enduring legacy.

The ROG Thor 3000W Titanium III Edition 20 is the pinnacle ROG power supply, engineered to support extreme configurations of up to four GeForce RTX 5090 graphics cards. It leverages a server-grade GaN MOSFET to efficiently deliver massive power at much lower temperatures than standard designs. To safely manage this unprecedented output, the ROG Equalizer 12V-2x6 PCIe power cable actively reduces system thermal stress. Meanwhile, the GPU-First Intelligent Voltage Stabilizer ensures unmatched voltage stability during peak overclocking. The OLED Display & Extender lets you monitor real-time power metrics right where you need them.

The ROG Thor 3000W Titanium III Edition 20 is the definitive power solution for the most demanding PC builds yet conceived.

Specifications

Power

Total power: 3000 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 3000 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 30 A
Max output current (+12V): 250 A
Max output current (+5V): 30 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Over voltage, Short circuit, Under power

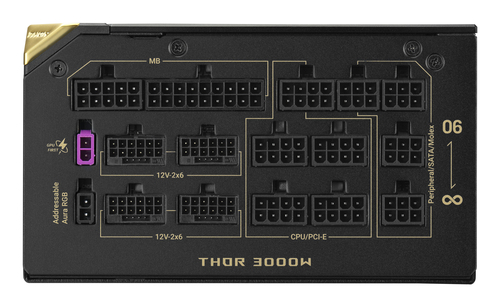

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 9
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 4
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 100 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active

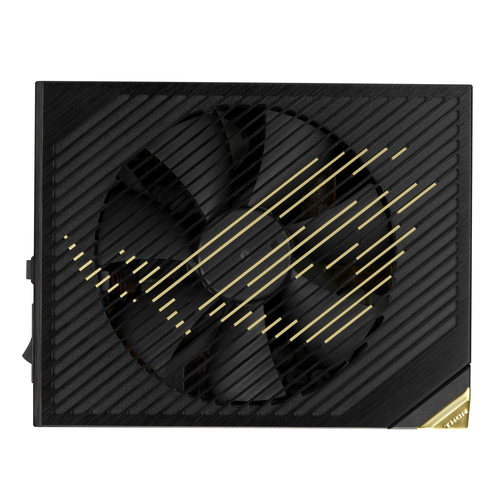

Number of fans: 1 fan(s)
Fan location: Top
Illumination: Yes
On/off switch: Yes

Packaging content

Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Packaging content: Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG OLED stand x 1 ROG 20TH Thank You Card x 1 ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1
