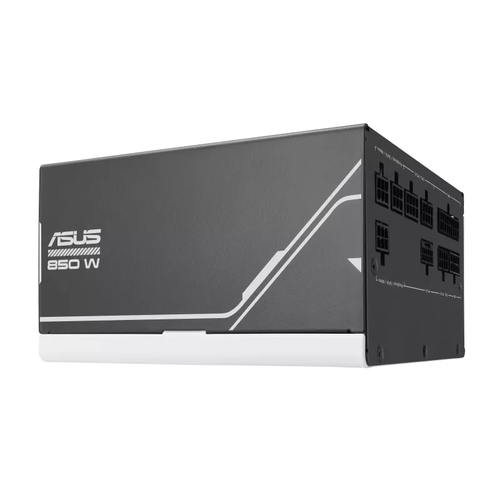

Prime 850W Gold 850 Watt, ATX 3.0 Compatible, Fully Modular Power Supply, 80+ Gold Certified, Dual
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Specifications
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 110 W
- Combined power (+12V)
- 846 W
- Combined power (+5V)
- 110 W
- Combined power (-12V)
- 3.6 W
- Combined power (+5Vsb)
- 12.5 W
- Max output current (+3.3V)
- 20 A
- Max output current (+12V)
- 70.5 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 2.5 A
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

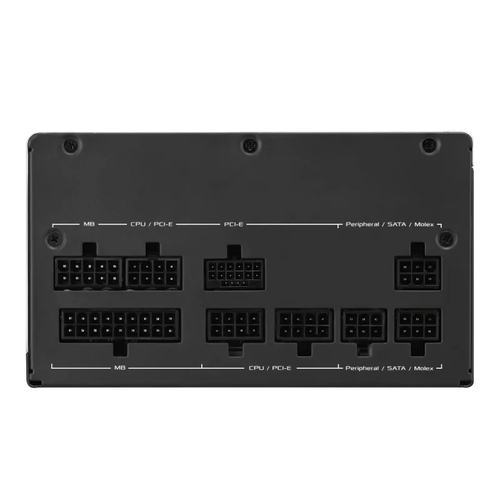

Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Motherboard power cable length
- 61 cm
- Number of SATA power connectors
- 5
- SATA power cable length
- 120,400 mm
- Peripheral (Molex) power connectors (4-pin)
- 3
- Peripheral (Molex) power cable length
- 150,400 mm
- PCI Express power connectors (8-pin)
- 3
- PCI Express power connectors (16-pin)
- 1
- PCI Express power cable length
- 67.5 cm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 65 cm
- Cabling type
- Fully-Modular
Performance
- 80 PLUS certification
- 80 PLUS Gold
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- ATX version
- 3.0
- Bearing technology
- DBB
Design
- Product colour
- Black, White
- Cooling type
- Active
- Number of fans
- 1 fan(s)
- Fan location
- Top
- On/off switch
- Yes

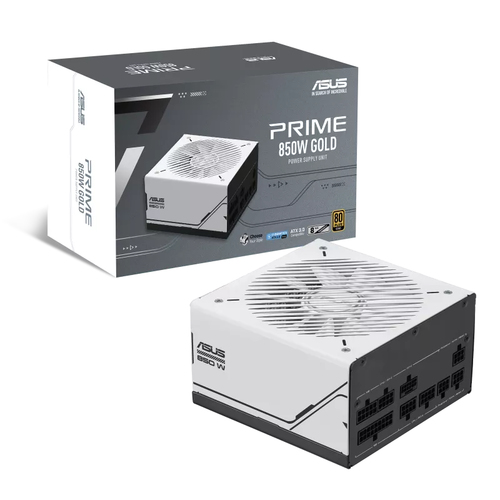

Packaging content
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 150 mm
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 1.5 kg

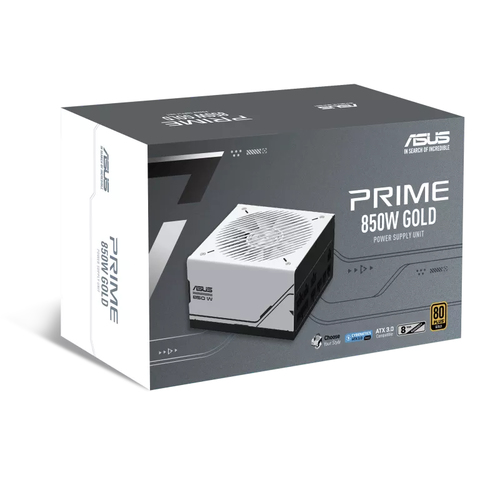

Packaging data
- Package weight
- 2.72 kg
- Package type
- Box
