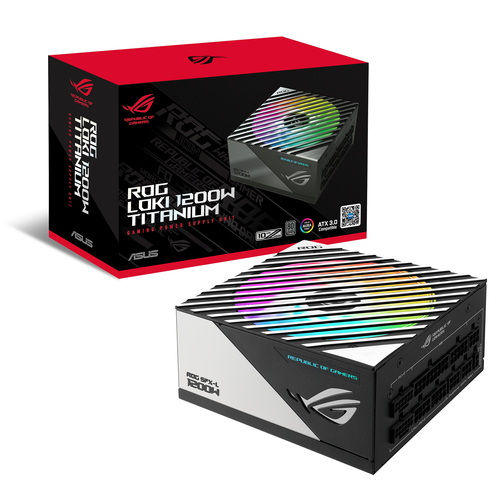

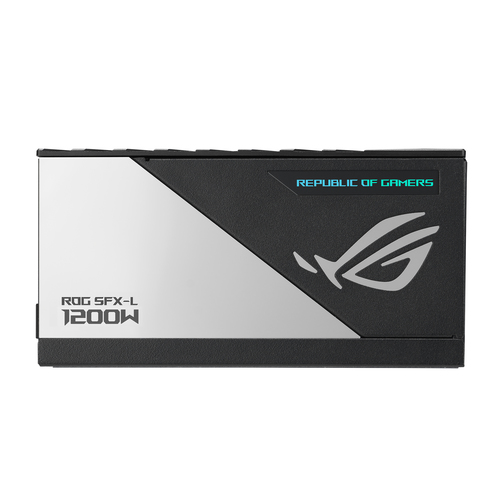

ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver

Part # ROG-LOKI-1200TSFXLGAMINGUPC 195553721714Warranty: 10 years6.25 lb

1200 W 100 - 240 V
Motherboard power connector: 20+4 pin ATX
PC SFX-L 80 PLUS Platinum
Active 12 cm
Black, Silver

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The World's Quietest and Most Powerful SFX-L PSU

Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual Ball Fan Bearings

2x longer lifespan

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

Quiet intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda Standard ++ Certification

Quietly deviant

On average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.

ENGINEERING

80 PLUS Titanium Certified

Effortless output

Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.1 Compatible

Step into the future

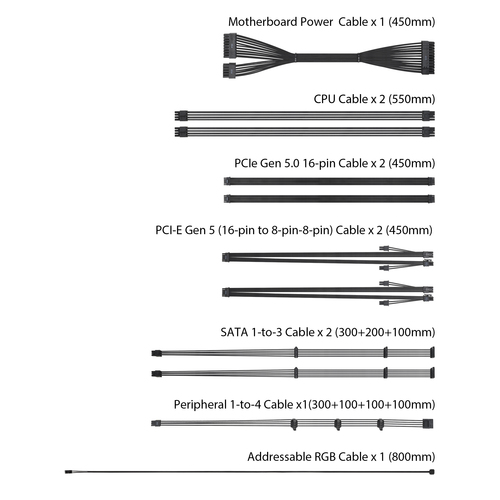

The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

ARGB-illuminated Fan & Aura Sync

Magical glow

The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.

* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty

A decade of power

Specifications

Power

Total power: 1200 W
Peak power: 1200 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 1200 W
Combined power (+5V): 110 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 100 A
Max output current (+5V): 20 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 3 A
Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
